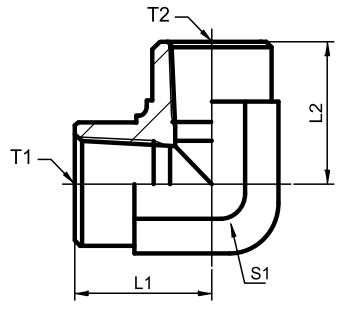

90° Elbow NPT Female
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | |||
| T1 | T2 | L1 | L2 | S1 | g | ||
| 7N9-02 7N9-04 7N9-06 7N9-08 7N9-12 7N9-16 7N9-20 7N9-24 7N9-32 |
NPT1/8″X27 NPT1/4″X18 NPT3/8″X18 NPT1/2″ X14 NPT3/4″X14 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/2*X11.5 NPT2″ X11.5 |
NPT1/8″ X27 NPT1/4″ X18 NPT3/8″ X18 NPT1/2″ X14 NPT3/4″ X14 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/2″ X11.5 NPT2″X11.5 |
20 22.5 26 31 34 42 48 53 62 |
20 22.5 26 31 34 42 48 53 62 |
16 19 24 27 33 41 50 60 70 |
38 51 96 114 173 320 469 885 1048 |
34.5 21 21 21 17 14 8 7 — |
