Product Description

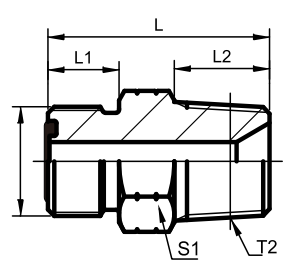

ORFS Male O-Ring / NPT Male

PART NO.	THREAD		DIMENSIONS				WEIGHT	WORKING PRESSURE
	T1	T2	L	L1	L2	1	g
1FN-04-02 1FN-04 1FN-04-06 1FN-04-08 1FN-06-04 1FN-06 1FN-06-08 1FN-08-04 1FN-08-06 1FN-08 1FN-08-12 1FN-10-06 1FN-10-08 1FN-10-12 1FN-12-08 1FN-12 1FN-12-16 1FN-16-12 1FN-16 1FN-16-20 1FN-20-16 1FN-20 1FN-24	9/16″ X18 9/16″X18 9/16″ X18 9/16″X18 11/16″ X16 11/16″ X16 11/16″ X16 13/16″ X16 13/16″ X16 13/16″X16 13/16″ X16 1″X14 1” X14 1″ X14 1.3/16″ X12 1.3/16″ X12 1.3/16″ X12 1.7/16″ X12 1.7/16″ X12 1.7/16″ X12 1.11/16″ X12 1.11/16″X12 2″ X12	NPT1/8 “X27 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT1/2″X14 NPT3/4″X14 NPT1’X11.5 NPT3/4″X14 NPT1’X11.5 NPT1.1/4″X11.5\| NPT1″X11.5 NPT1.1/4″X11.5\| NPT1.1/2″X11.5\|	27 32 33.5 38.5 32 34 39.5 37.5 37.5 41.5 43 41.5\| 46 46 49 49 54 51 55.5 58.5 57.5 58.5 61	10 10 10 10 11 11 11 13 13 13 13 15.5 15.5 15.5 17 17 17 17.5 17.5 17.5 17.5 17.5 17.5	10 14.5 14.5 19.5 14.5 14.5 19.5 14.5 14.5 19.5 19.5 14.5 19.5 19.5 19.5 19.5 24.5 19.5 24.5 25.5 24.5 25.5 26.5	17 17 19 22 19 19 22 22 22 22 30 27 27 30 32 32 36 41 41 46 46 46 55	27 33 45 67 40 49 72 60 65 77 120 103 115 142 160 176 230 270 283 390 345 395 552	34.5 27.5 21 21 27.5 21 21 27.5 21 21 17 21 21 17 21 17 14 17 14 8 14 8 7
