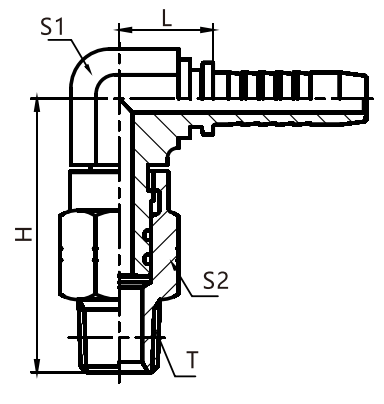

90° tapered pipe with external thread
| Code PART NO. |
Thread T | Hose Bore | Dimensions | ||||
| THREAD T | Nominal Inner Diameter DN | Dash | L | H | 1 | S2 | |
| 15691KSW-04-04 15691KSW-06-06 15691KSW-08-08 15691KSW-12-12 |
NPT1/4″X18 NPT3/8 ” X18 NPT1/2″X14 NPT3/4 ” X14 |
6 10 13 19 |
4 6 8 12 |
25 25 28.5 36 |
59.5 64.5 71.5 76.9 |
16 16 19 27 |
19 22 27 32 |
