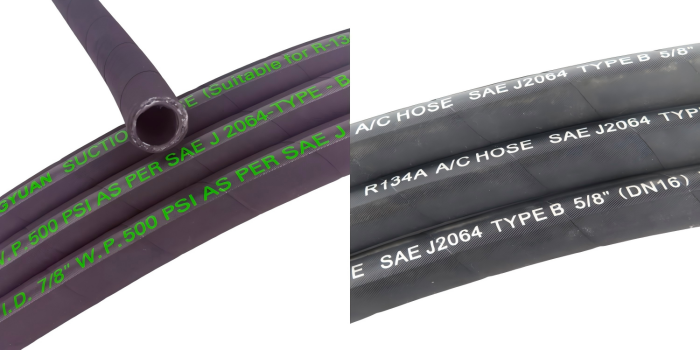

1.SAE J2064 Type B A/C Hose

Features: Designed specifically for mobile automotive air conditioning systems (R134a refrigerant), with low permeability, ensuring efficient refrigerant circulation.
Structure: Inner layer made of CIIR and EPDM, with PA lining available.
Cover layer made of CSM and EPDM.
Temperature: -40°C to +135°C.
Application: A/C systems for various passenger cars and commercial vehicles.

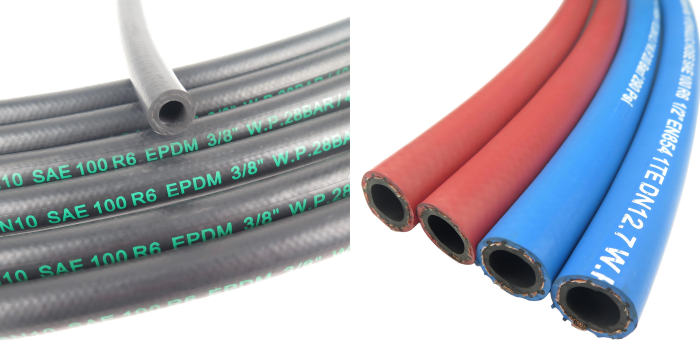

2.EPDM Coolant Hose

Features: Excellent ozone &aging resistance, long-term crack resistance, and excellent flexibility.

Rubber: Inner and outer are made of high-quality EPDM, offering excellent resistance to coolant (ethylene glycol-water solution)

Temperature: -40°C to +150°C (short-term peaks up to +180°C).

Applications: Engine cooling systems, new energy vehicle thermal management systems, and heat dissipation circuits for industrial equipment.

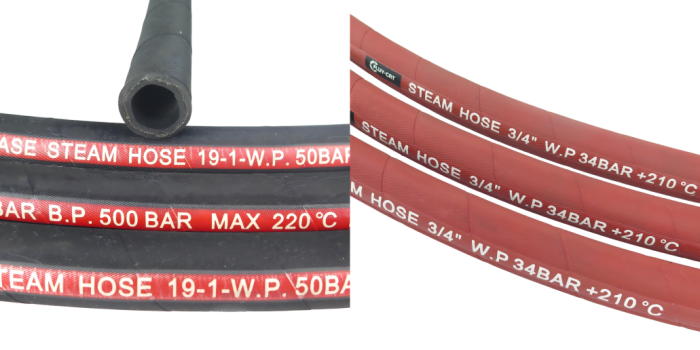

3.Steam Hose

Features: Designed specifically for conveying saturated steam,fatigue-resistant construction.

Structure: High-strength EPDM inner and outer layers, reinforced with impregnated high-strength fiber braided or steel wire braided.

Temperature: -30°C to +180°C (operating pressure and service life vary depending on temperature).

Applications: Steam cleaning, equipment heating, and sterilization processes in the food processing, pharmaceutical, and chemical industries.

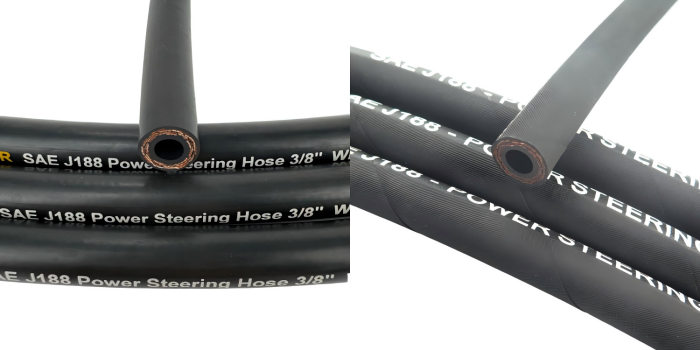

4.SAE J188Power Steering Hose

Features: High-pressure resistance, excellent pulse performance

Structure: Inner and outer layers are made of specialized CSM

Temperature: -40°C to +135°C.

Applications: Hydraulic power steering (PS) systems in automobiles, construction machinery, and commercial vehicles.

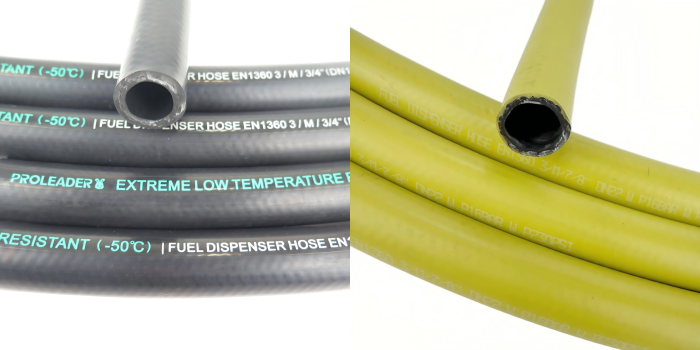

5.EN 1360 Fuel Dispenser Hose

Features: Excellent conductivity, safe and anti-static, wear-resistant, and flex-resistant.

Reinforcement: ① High-strength rubber-impregnated fiber braided + copper wire;

② High-strength copper-plated steel wire braid.

Temperature: -40°C to +70°C, with an extreme low-temperature version rated at -55°C to +70°C, popular in northern area.

Application: Fuel transportation (hydrocarbon fuel) between underground tanks and dispensers at gas stations.

The five products above are all proven, proven performers with over 45% adhesive content and excellent performance! Whether replacing old parts or stocking up for new equipment, they’re a reliable choic
