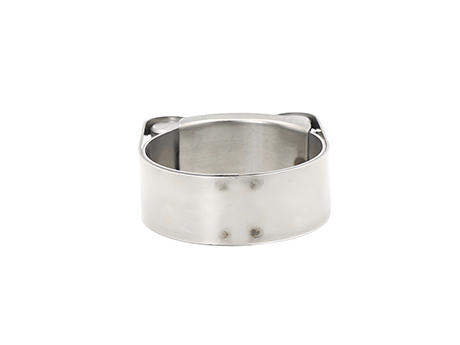

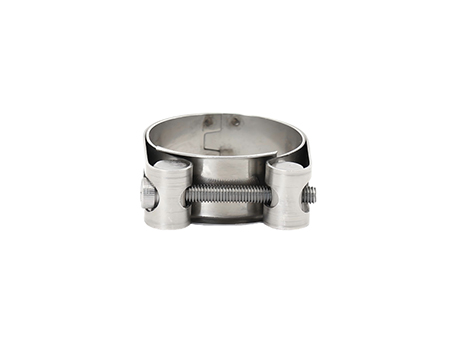

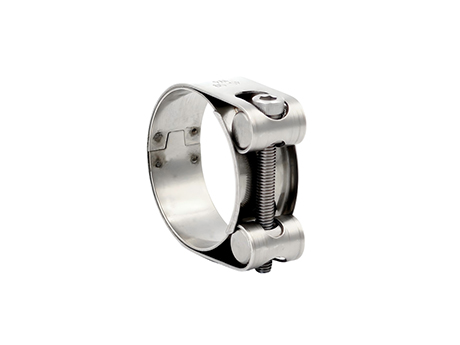

Unitary Hose Clamp with Double Bands
● With the preferred brand of, produces a variety of hose clamps, stainless steel no-hub couplings and gaskets which are widely applied in the industries of auto oil pipeline, motor pipeline, drainage system, and so on
Unitary Hose Clamp with Double Bands
| Size | Item no. | bandwidth mm | screw | thickness of band | suggested install torque |
pcs/carton | ||
| mm | W1 | W4 | W5 | mm | ||||
| 35-40 40-45 45-50 50-55 55-60 60-65 65-70 70-75 75-80 80-85 85-90 90-95 95-100 100-105 105-110 110-115 115-120 120-125 125-130 130-135 135-140 140-145 145-150 150-155 155-160 |
QL04A3540 QL04A4045 QL04A4550 QL04A5055 QL04A5560 QL04A6065 QL04A6570 QL04A7075 QL04A7580 QL04A8085 QL04A8590 QL04A9095 QL04A95100 QL04A100105 QL04A105110 QL04A110115 QL04A115120 QL04A120125 QL04A125130 QL04A130135 QL04A135140 QL04A140145 QL04A145150 QL04A150155 QL04A155160 |
QL04D3540 QL04D4045 QL04D4550 QL04D5055 QL04D5560 QL04D6065 QL04D6570 QL04D7075 QL04D7580 QL04D8085 QL04D8590 QL04D9095 QL04D95100 QL04D100105 QL04D105110 QL04D110115 QL04D115120 QL04D120125 QL04D125130 QL04D130135 QL04D135140 QL04D140145 QL04D145150 QL04D150155 QL04D155160 |
QL04E3540 QL04E4045 QL04E4550 QL04E5055 QL04E5560 QL04E6065 QL04E6570 QL04E7075 QL04E7580 QL04E8085 QL04E8590 QL04E9095 QL04E95100 QL04E100105 QL04E105110 QL04E110115 QL04E115120 QL04E120125 QL04E125130 QL04E130135 QL04E135140 QL04E140145 QL04E145150 QL04E150155 QL04E155160 |
20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 |
M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 |
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 |
9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm |
50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 |
| Material | Band | bridge | Trunnion | bolt |
| W1 W4 W5 |
Zinc plated steel AISI 301SS/304SS AISI 316SS |
Zinc plated steel AISI 301SS/304SS AISI 316SS |
Zinc plated steel AISI 301SS/304SS AISI 316SS |
Zinc plated steel A2-70 A4-70 |
