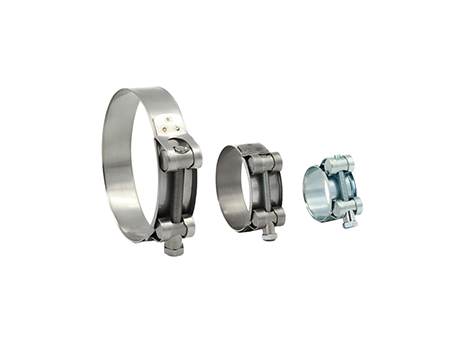

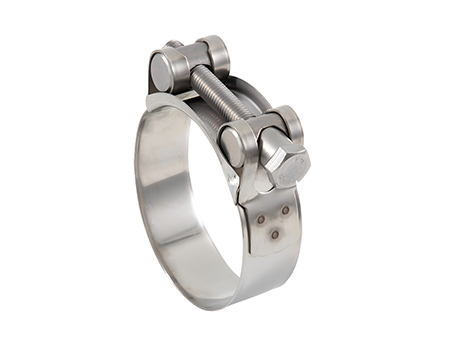

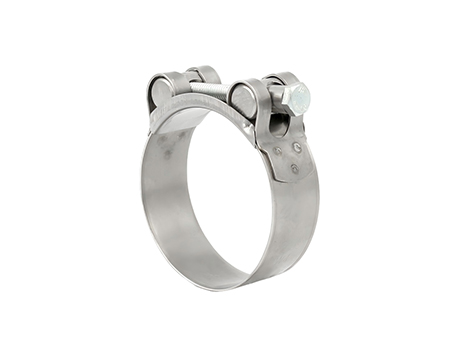

Unitary Clamp
● With the preferred brand of , produces a variety of hose clamps, stainless steel no-hub couplings and gaskets which are widely applied in the industries of auto oil pipeline, motor pipeline, drainage system, and so on
Unitary Clamp
| Size mm | screw | W1 | W2&W4&W5 | suggested install torque | pcs/carton | |||
| Item no. | bandwidth | Item no. | bandwidth | |||||
| mm | mm | |||||||
| 17-19 20-22 23-25 26-28 29-31 32-35 36-39 40-43 44-47 48-51 52-55 56-59 60-63 64-67 68-73 74-79 80-85 86-91 92-97 981-03 1041-12 1131-21 1221-30 1311-39 1401-48 1491-61 1621-74 1751-87 1882-00 2012-13 2142-26 2272-39 2402-52 |
M5×40 M5×40 M5×40 M5×40 M6×55 M6×55 M6×55 M6×55 M6×55 M6×55 M6×55 M6×55 M6×55 M8×70 M8×70 M8×70 M8×70 M8×70 M8×70 M8×70 M8×80 M8×80 M8×80 M10×90 M10×90 M10×110 M10×110 M10×110 M10×110 M10×110 M10×110 M10×110 M10×110 |
QL03A1719 QL03A2022 QL03A2325 QL03A2628 QL03A2931 QL03A3235 QL03A3639 QL03A4043 QL03A4447 QL03A4851 QL03A5255 QL03A5659 QL03A6063 QL03A6467 QL03A6873 QL03A7479 QL03A8085 QL03A8691 QL03A9297 QL93A8103 QL103A4112 QL113A3121 QL123A2130 QL133A1139 QL143A0148 QL143A9161 QL163A2174 QL173A5187 QL183A8200 QL203A1213 QL213A4226 QL223A7239 QL243A0252 |
0.6×18 0.6×18 0.6×18 0.6×18 0.8×20 0.8×20 0.8×20 0.8×20 1.2×22 1.2×22 1.2×22 1.2×22 1.2×22 1.5×22 1.5×24 1.5×24 1.5×24 1.5×24 1.5×24 1.5×24 1.5×24 1.5×24 1.5×24 1.7×26 1.7×26 1.7×26 1.7×26 1.7×26 1.7×26 1.7×26 1.7×26 1.7×26 1.7×26 |
QL03B1719 QL03B2022 QL03B2325 QL03B2628 QL03B2931 QL03B3235 QL03B3639 QL03B4043 QL03B4447 QL03B4851 QL03B5255 QL03B5659 QL03B6063 QL03B6467 QL03B6873 QL03B7479 QL03B8085 QL03B8691 QL03B9297 QL93B8103 QL103B4112 QL113B3121 QL123B2130 QL133B1139 QL143B0148 QL143B9161 QL163B2174 QL173B5187 QL183B8200 QL203B1213 QL213B4226 QL223B7239 QL243B0252 |
QL03D1719 QL03D2022 QL03D2325 QL03D2628 QL03D2931 QL03D3235 QL03D3639 QL03D4043 QL03D4447 QL03D4851 QL03D5255 QL03D5659 QL03D6063 QL03D6467 QL03D6873 QL03D7479 QL03D8085 QL03D8691 QL03D9297 QL93D8103 QL103D4112 QL113D3121 QL123D2130 QL133D1139 QL143D0148 QL143D9161 QL163D2174 QL173D5187 QL183D8200 QL203D1213 QL213D4226 QL223D7239 QL243D0252 |
0.6×18 0.6×18 0.6×18 0.6×18 0.6×20 0.6×20 0.6×20 0.6×20 0.8×22 0.8×22 0.8×22 0.8×22 0.8×22 0.8×22 0.8×24 0.8×24 0.8×24 0.8×24 0.8×24 0.8×24 0.8×24 0.8×24 0.8×24 1.0×26 1.0×26 1.0×26 1.0×26 1.0×26 1.0×26 1.0×26 1.0×26 1.0×26 1.0×26 |
4.5Nm 4.5Nm 4.5Nm 4.5Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 29Nm 29Nm 29Nm 29Nm 29Nm 29Nm 29Nm 29Nm 29Nm 29Nm |
200 200 200 200 200 200 200 100 100 100 100 100 100 100 100 50 50 50 50 50 50 50 50 50 50 50 25 25 25 25 25 25 25 |
| Material | Band | bridge | Trunnion | sleeving | bolt |
| W1 W2 W4 W5 |
Zinc plated steel AISI 430SS AISI 301ss/304ss AISI 316SS |
Zinc plated steel AISI 430SS AISI 301ss/304ss AISI 316SS |
Zinc plated steel Zinc plated steel AISI 301ss/304ss AISI 316SS |
Zinc plated steel Zinc plated steel AISI 301ss/304ss AISI 316SS |
Zinc plated steel Zinc plated steel A2-70 A4-70 |
