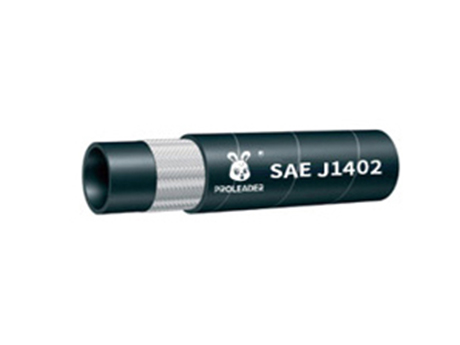

SAE J1402 Air Brake Hose
Brake Hose
● Tube: EPDM; Reinforcement: One layer textile braid; Cover: EPDM
● Application: Suitable for transmission pressure of automobile air brake system; Temperature Range: -40°C~+135°C
SAE J1402 Air Brake Hose
| SIZE I.D | O.D | W.P | B.P | B.R | L | W.T | ||||
| dash | inch | mm | mm | bar | psi | bar | psi | mm | m | kg/m |
| -3 -4 -5 -6 -8 -10 -12 |
3/16″ 1/4″ 5/16″ 3/8″ 1/2″ 5/8″ 3/4″ |
4.8 6.3 7.9 9.5 12.7 15.9 19.1 |
12.0 13.0 14.6 16.5 20.4 23.6 27.6 |
35 28 28 28 28 24 21 |
500 400 400 400 400 350 305 |
140 112 112 112 112 96 84 |
2000 1600 1600 1600 1600 1440 1218 |
40 45 65 80 100 160 190 |
50-100 50-100 50-100 50-100 50-100 50-100 50-100 |
0.15 0.16 0.19 0.24 0.32 0.39 0.52 |
