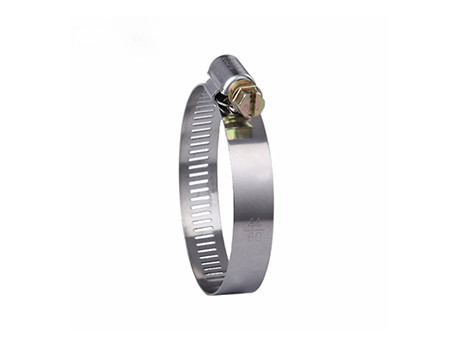

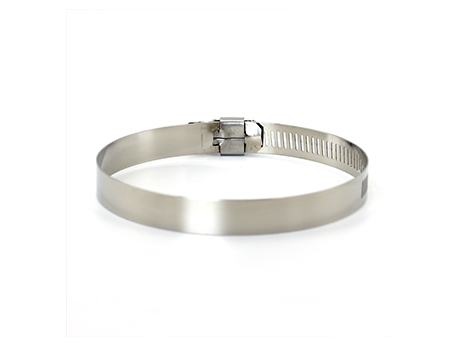

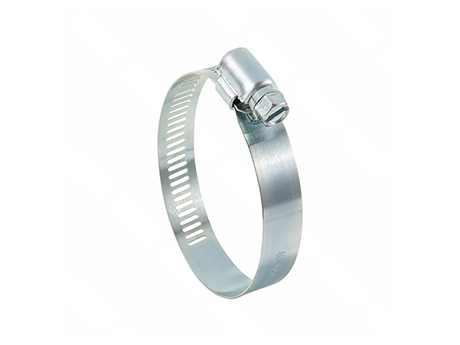

Perforated and Interlock Design Hose Clamp
● With the preferred brand of , produces a variety of hose clamps, stainless steel no-hub couplings and gaskets which are widely applied in the industries of auto oil pipeline, motor pipeline, drainage system, and so on
12.7mm Perforated and Interlock Design Hose Clamp
| Size | ItemNO | |||||||
| SAE no | mm | inch | W1 | W2 | W4 | W5 | pcs/bag | pcs/carton |
| 6 8 10 12 16 20 24 28 32 36 40 44 48 52 56 60 64 72 80 88 96 104 |
11-20 13-23 14-27 18-32 21-38 21-44 27-51 33-57 40-64 46-70 50-76 59-83 65-89 72-95 78-102 84-108 91-114 103-127 117-140 130-152 141-165 157-178 |
0.44″-0.78″ 0.5″-0.91″ 0.56″-1.06″ 0.69″-1.25″ 0.81″-1.5″ 0.81″-1.75″ 1.06″-2″ 1.31″-2.25″ 1.56″-2.5″ 1.81″-2.75″ 2″-3″ 2.31″-3.25″ 2.56″-3.5″ 2.81″-3.75 3.06″-4″ 3.31″-4.25″ 3.56″-4.5″ 4.06″-5″ 4.62″-5.5″ 5.12″-6″ 5.56″-6.5″ 6.18″-7″ |
MS01A6 MS01A8 MS01A10 MS01A12 MS01A16 MS01A20 MS01A24 MS01A28 MS01A32 MS01A36 MS01A40 MS01A44 MS01A48 MS01A52 MS01A56 MS01A60 MS01A64 MS01A72 MS01A80 MS01A88 MS01A96 MS01A104 |
MS01B6 MS01B8 MS01B10 MS01B12 MS01B16 MS01B20 MS01B24 MS01B28 MS01B32 MS01B36 MS01B40 MS01B44 MS01B48 MS01B52 MS01B56 MS01B60 MS01B64 MS01B72 MS01B80 MS01B88 MS01B96 MS01B104 |
MS01D6 MS01D8 MS01D10 MS01D12 MS01D16 MS01D20 MS01D24 MS01D28 MS01D32 MS01D36 MS01D40 MS01D44 MS01D48 MS01D52 MS01D56 MS01D60 MS01D64 MS01D72 MS01D80 MS01D88 MS01D96 MS01D104 |
MS01E6 MS01E8 MS01E10 MS01E12 MS01E16 MS01E20 MS01E24 MS01E28 MS01E32 MS01E36 MS01E40 MS01E44 MS01E48 MS01E52 MS01E56 MS01E60 MS01E64 MS01E72 MS01E80 MS01E88 MS01E96 MS01E104 |
100 100 100 50 50 50 50 50 50 50 20 20 20 20 10 10 10 10 10 10 10 10 |
1000 1000 1000 1000 1000 500 500 500 500 500 500 500 500 500 250 250 250 250 250 250 250 250 |
| Material | Band | Housing | Screw | suggested install torque |
| W1 W2 W2B W4 W5 |
Zinc plated steel AISI 201SS/301SS AISI 201SS AISI 201SS/301SS/304SS AISI 316SS |
Zinc plated steel AISI 201SS/302SS Zinc plated steel AISI 201SS/301SS/304SS AISI 316SS |
Zinc plated steel Zinc plated steel Zinc plated steel AISI 201SS/301SS/304SS AISI 316SS |
3.8Nm 6Nm 6Nm 6Nm 6Nm |
