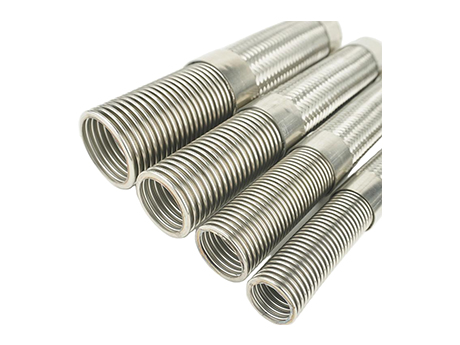

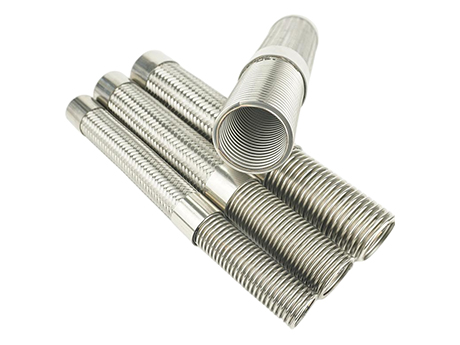

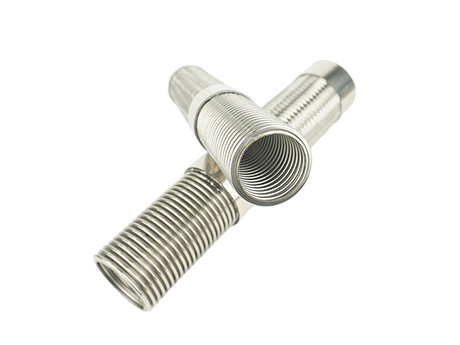

Flexible Metal Hose
● Annular corrugatde tube:A corrugated pipe with a closed circular shape
● Braid:The metal woven fabric on the outer curface of the corrugated pipe is divided into steel wire mesh sleeve,steel belt mesh sleeve,and ribbon mesh sleeve
● Temperature Range: -50°C ~+300°C;Tube:SU304/316/321
Flexible Metal Hose
| I.D | O.D | P | W.T | B.R | L | Npa | KG/m | |||||||
| DN | mm | mm | mm | mm | S | D | M | C*W*D | CT | 1B | 2B | 3B | CT | BW |
| 6 8 10 12 16 20 25 32 40 50 65 80 100 125 150 175 200 250 300 |
6.1 8.1 10.1 12.2 16.3 20.3 25.5 33.8 40.3 50.2 65.2 79 99 123.5 150 175 200 250 300 |
9.6 12.1 14.2 16.7 21.6 26.8 32.3 41.2 49.5 60.3 75.2 97 120 149 179 208 238 296 348 |
2 2.2 2.6 3 3.5 3.8 3.8 3.8 5.1 5.1 5.1 10.5 12 14 19.5 20 21 22.5 27 |
0.18 0.18 0.18 0.18 0.2 0.2 0.2 0.22 0.25 0.25 0.25 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 |
50 65 80 95 120 160 175 225 280 350 390 480 600 750 900 1000 1000 1250 1500 |
110 145 180 215 270 360 400 510 640 800 845 1000 1200 1500 1800 2000 2000 2500 3000 |
100 100 100 100 100 100 100 100 100 100 100 9 9 9 9 9 9 8.5 8.5 |
20*5*0.3 20*6*0.3 24*8*0.3 24*9*0.3 36*8*0.3 36*9*0.3 36*11*0.3 48*10*0.3 48*12*0.3 48*14*0.3 48*14*0.35 72*13*0.4 72*15*0.4 96*13*0.45 96*15*0.45 128*13*0.5 128*15*0.5 128*15*0.55 156*16*0.6 |
0.8 0.8 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 / / / / / / / / |
≤6 ≤6 ≤6 ≤6 ≤6 ≤6 ≤6 ≤5 ≤5 ≤4 ≤2.5 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1 ≤1 ≤1 ≤1 |
≤12 ≤12 ≤12 ≤12 ≤12 ≤12 ≤12 ≤10 ≤10 ≤8 ≤4 ≤2.5 ≤2.5 ≤4 ≤2.5 ≤2.5 ≤2.5 ≤1.6 ≤1.6 |
≤18 ≤18 ≤18 ≤18 ≤18 ≤18 ≤18 ≤15 ≤15 ≤12 ≤6 ≤4 ≤4 ≤60 ≤4 ≤4 ≤4 ≤2.5 ≤2.5 |
0.065 0.1 0.11 0.15 0.19 0.27 0.36 0.52 0.67 0.86 1.1 1.8 2.2 3.6 4.4 5.8 7 11.8 14 |
0.12 0.12 0.16 0.18 0.21 0.26 0.3 0.4 0.5 0.65 1.1 1.6 2 2.9 3.3 4 4.7 6.5 8.5 |
