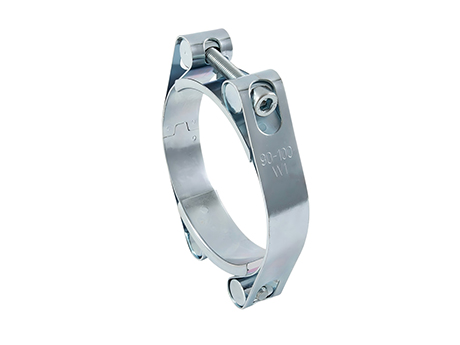

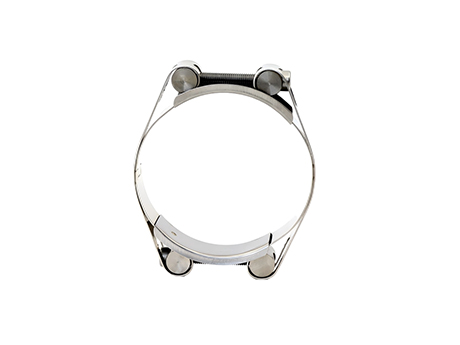

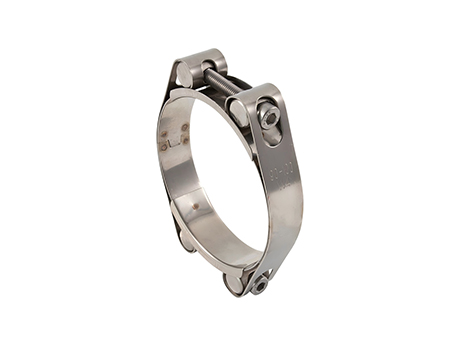

Double Bolts and Double Bands Super Hose Clamp
● With the preferred brand of , produces a variety of hose clamps, stainless steel no-hub couplings and gaskets which are widely applied in the industries of auto oil pipeline, motor pipeline, drainage system, and so on
Double Bolts and Double Bands Super Hose Clamp
| Size mm | bandwidth mm | thickness of band | screw | Item no. | suggested | pcs/carton | ||
| mm | W1 | W4 | W5 | install torque | ||||
| 35–45 40–50 45–55 50–60 55–65 60–70 65–75 70–80 75–85 80–90 85–95 67–70 70–80 80–90 901–00 1101–10 1101–20 1201–30 1301–40 1401–50 1501–60 1601–70 1701–80 1801–90 1902–00 2002–10 2102–20 2202–30 2302–40 2402–50 2502–60 2602–70 2702–80 2903–00 |
20 20 20 20 20 20 20 20 20 20 20 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 |
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 |
M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M6*45 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 M8*60 |
QL05A3545 QL05A4050 QL05A4555 QL05A5060 QL05A5565 QL05A6070 QL05A6575 QL05A7080 QL05A7585 QL05A8090 QL05A8595 QL05A6770 QL05A7080 QL05A8090 QL95A0100 QL115A0110 QL115A0120 QL125A0130 QL135A0140 QL145A0150 QL155A0160 QL165A0170 QL175A0180 QL185A0190 QL195A0200 QL205A0210 QL215A0220 QL225A0230 QL235A0240 QL245A0250 QL255A0260 QL265A0270 QL275A0280 QL295A0300 |
QL05D3545 QL05D4050 QL05D4555 QL05D5060 QL05D5565 QL05D6070 QL05D6575 QL05D7080 QL05D7585 QL05D8090 QL05D8595 QL05D6770 QL05D7080 QL05D8090 QL95D0100 QL115D0110 QL115D0120 QL125D0130 QL135D0140 QL145D0150 QL155D0160 QL165D0170 QL175D0180 QL185D0190 QL195D0200 QL205D0210 QL215D0220 QL225D0230 QL235D0240 QL245D0250 QL255D0260 QL265D0270 QL275D0280 QL295D0300 |
QL05E3545 QL05E4050 QL05E4555 QL05E5060 QL05E5565 QL05E6070 QL05E6575 QL05E7080 QL05E7585 QL05E8090 QL05E8595 QL05E6770 QL05E7080 QL05E8090 QL95E0100 QL115E0110 QL115E0120 QL125E0130 QL135E0140 QL145E0150 QL155E0160 QL165E0170 QL175E0180 QL185E0190 QL195E0200 QL205E0210 QL215E0220 QL225E0230 QL235E0240 QL245E0250 QL255E0260 QL265E0270 QL275E0280 QL295E0300 |
9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 9Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm 18Nm |
100 100 100 100 100 100 100 100 100 100 100 50 50 50 50 50 50 50 50 50 50 50 50 25 25 25 25 25 25 25 25 25 25 25 |
| Material | Band | bridge | Trunnion | bolt |
| W1 W4 W5 |
Zinc plated steel AISI 301SS/304SS AISI 316SS |
Zinc plated steel AISI 301SS/304SS AISI 316SS |
Zinc plated steel AISI 301SS/304SS AISI 316SS |
Zinc plated steel A2-70 A4-70 |
