B1 Closed Double Shut-off Hydraulic Quick Couplings
Hydraulic Quick Coupling
● B1 closed double shut-off hydraulic quick couplings are a type of hydraulic coupling used to connect and disconnect hydraulic lines quickly and easily. They are designed to provide a reliable, leak-free connection between hydraulic lines, and are typically used in applications such as agriculture, construction, mining, and manufacturing.

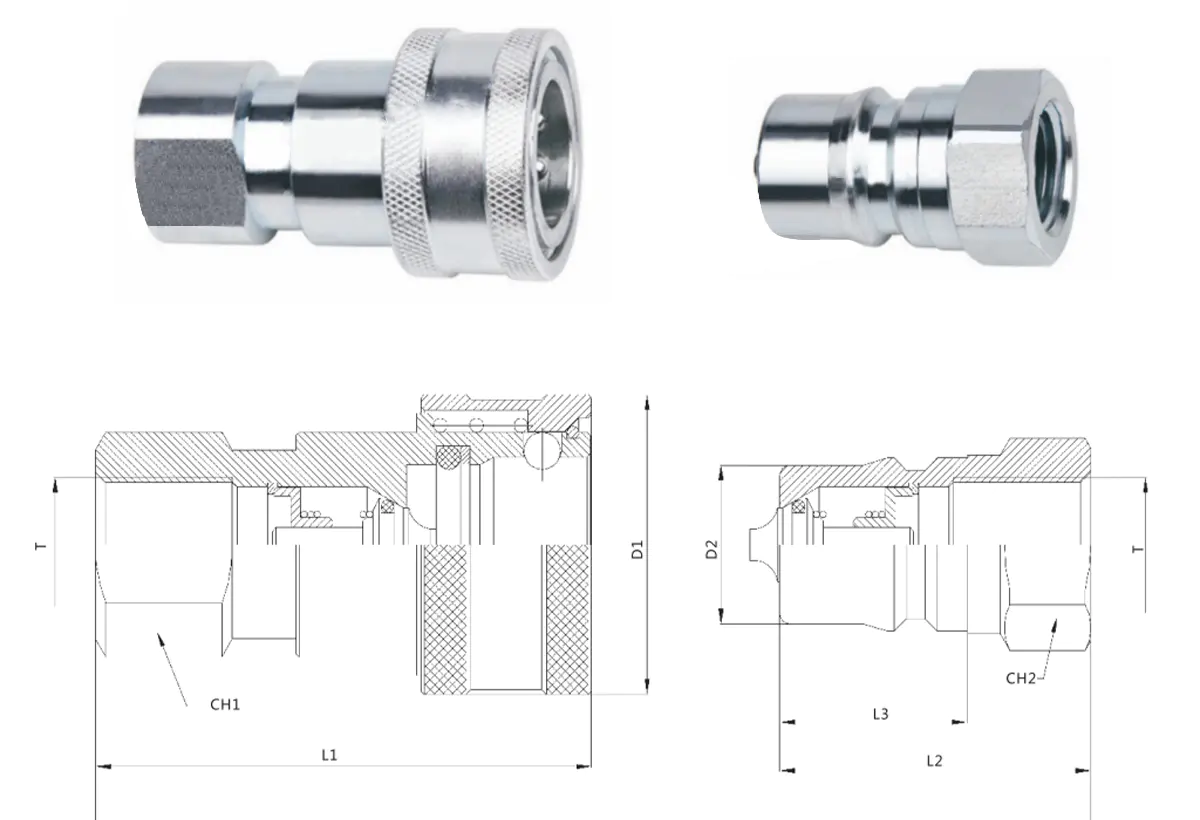

| PART No. | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T | ||
| B1 -01T-SP B1 -02T-SP B1 -03T-SP B1 -04T-SP B1 -06T-SP B1 -08T-SP |
DN5 DN6.3 DN10 DN12.5 DN20 DN25 |
59 72 80 93 11 3 12 7 |
48 58 65 74 92 103 |
29 36 40 46.5 56 63 |
19 22.8 25 28 36 45 |
24 28.5 35 44.5 54 63.5 |
10.9 14.2 19.1 23.6 31.5 37.8 |
17 19 24 28.5 36 41 |
14 19 24 28.5 36 41 |
ZG1/8 ZG1/4 ZG3/8 ZG1/2 ZG3/4 ZG1 |
G1/8 G1/4 G3/8 G1/2 G3/4 G1 |
NPT1/8 NPT1/4 NPT3/8 NPT1/2 NPT3/4 NPT1 |
