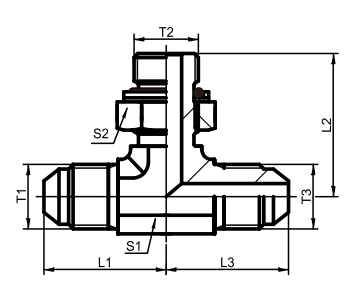

Metric Male 74° Cone / Matric Male Adjustable Stud End L-Series ISO 6149-3 Branch Tee
| PART NO. | THREAD | DIMENSIONS | Mpa | |||||
| T1 | T2 | T3 | L1.L3 | 12 | S1 | S2 | ||
| AQHQ-14-12-14OG AQHQ-16-14-16OG AQHQ-18-16-18OG AQHQ-22-18-22OG AQHQ-27-22-27OG AQHQ-30-27-30OG AQHQ-33-27-33OG AQHQ-36-33-36OG AQHQ-39-33-39OG AQHQ-45-42-45OG |
M14X1.5 M16X1.5 M18X1.5 M22 1.5 M27X1.5 M30X1.5 M33X2 M36X2 M39 2 M45X2 |
M12X1.5 M14X1.5 M16X1.5 M18 1.5 M22X1.5 M27X2 M27X2 M33X2 M33X2 M42 2 |
M14X1.5 M16X1.5 M18X1.5 M22 1.5 M27 1.5 M30X1.5 M33 2 M36X2 M39 2 M45X2 |
28.5 30.5 31.5 34 37.5 42.8 45.5 47 50 54 |
31 31 33.5 37.5 41.5 48.5 48.5 51.5 51.5 56.5 |
14 16 19 22 27 30 33 36 41 46 |
17 19 22 24 27 32 32 41 41 50 |
31.5 25 25 20 20 16 16 16 12.5 10 |
Note:If you interested to order the adapter with retainer ring please insert suffix，“DQ”after our ,for example AQHQ-30-27-30OGDQ.
