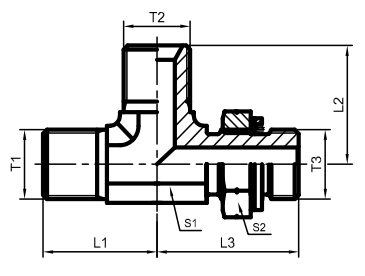

BSP Male 60°Seat /BSP Male O-Ring Adjustable Stud End Run Tee
| PART NO. | THREAD | DIMENSIONS | ||||||
| T1 | T2 | T3 | L1 | L2 | L3 | S1 | S2 | |
| ABBG-04OG AB8G-04-04-06OG ABBG-06OG ABBG-06-06-08OG ABBG-08OG ABBG-12OG ABBG-16OG |
G1/4″X19 G1/4″X19 G3/8″X19 G3/8″X19 G1/2″X14 G3/4″X14 G1″X11 |
G1/4″X19 G1/4″X19 G3/8″X19 G3/8″X19 G1/2″X14 G3/4·X14 G1″X11 |
G1/4″X19 G3/8·X19 G3/8·X19 G1/2″X14 G1/2″X14 G3/4·X14 G1″X11 |
24.5 26.5 27.5 31 34.5 40 46 |
24.5 26.5 27.5 31 34.5 40 46 |
31.3 35.5 35.8 43 43.2 49.3 53 |
14 16 16 22 22 27 33 |
19 22 22 27 27 32 41 |
