A2 Closed-Type Thread Locked Hydraulic Quick Connect Coupling Sets
Hydraulic Quick Coupling
● A2 closed-type thread locked hydraulic quick connect coupling sets are a type of hydraulic coupling used to quickly and easily connect and disconnect hydraulic lines. The coupling set includes a male and a female connector, which are designed to fit together and form a tight seal when connected.

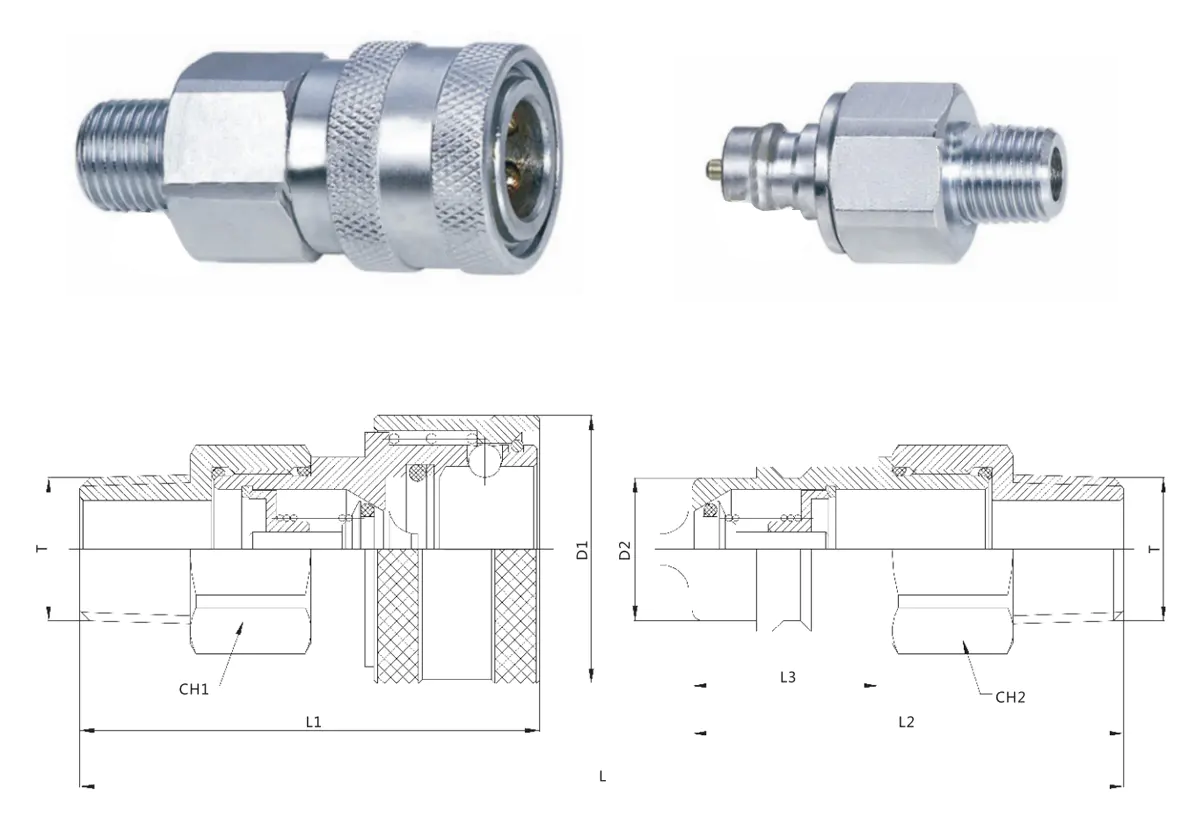

| PART No. | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T | ||
| A2-02T-SP A2-03T-SP A2-04T-SP A2-06T-SP A2-08T-SP |
DN6.3 DN10 DN12.5 DN20 DN25 |
85 93 107 121 141 |
53.5 57.5 66.5 81.5 96 |
46 53 62.5 66.5 79 |
15.2 21.4 27 28 36 |
26 31.5 38.5 48 56 |
11.8 17.3 20.5 29.1 34.3 |
22 27 27 36 41 |
22 27 27 36 41 |
ZG1/4 ZG3/8 ZG1/2 ZG3/4 ZG1 |
G1/4 G3/8 G1/2 G3/4 G1 |
NPT1/4 NPT3/8 NPT1/2 NPT3/4 NPT1 |
