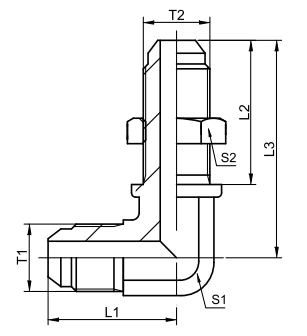

90° Metric Male 74° Cone Bulkhead
| PART NO. | THREAD | DIMENSIONS | Mpa | ||||
| T1 | T2 | L1 | L2 | L3 | S1 | ||
| 6Q9-12LN 6Q9-14LN 6Q9-16LN 6Q9-18LN 6Q9-22LN 6Q9-27LN 6Q9-30LN 6Q9-33LN 6Q9-36LN 6Q9-39LN 6Q9-42LN 6Q9-45LN |
M12X1.5 M14X1.5 M16X1.5 M18X1.5 M22 1.5 M27X1.5 M30X1.5 M33 2 M36X2 M39X2 M42X2 M45X2 |
M12X1.5 M14X1.5 M16X1.5 M18X1.5 M22 1.5 M27X1.5 M30X1.5 M33X2 M36X2 M39X2 M42X2 M45X2 |
24 28.5 30.5 31.5 34 37.5 42.8 45.5 47 50 52.5 54 |
38 40 41 43 44 48 53 55 56 58 59 60 |
52 56 58 62 64 72 78 82 B6 88 95 96 |
11 14 16 19 22 27 30 33 36 41 41 46 |
35 35 25 25 20 20 20 16 16 16 12.5 10 |
