Mining quick soft hose joint
| Code PART NO. |

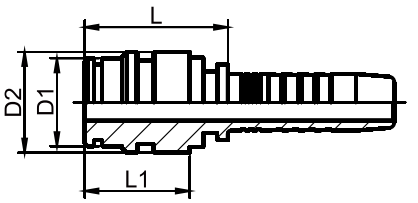

Specification | Dimensions | ||
| SIZE | A1 | D1 | D2 | |
| 60011-04-04D 60011-05-05D 60011-06-06D 60011-08-08D 60011-10-10D 60011-12-12D 60011-16-16D 60011-20-20D 60011-24-24D 60011-32-32D 60011-20-20G 60011-24-24G 60011-32-32G 60011-04-04K 60011-05-05K 60011-06-06K 60011-08-08K 60011-10-10K 60011-12-12K 60011-16-16K 60011-20-20K |
1/4″ 5/16″ 3/8″ 1/2″ 5/8″ 3/4″ 1″ 1.1/4″ 1.1/2″ 2″ 1.1/4″ 1.1/2″ 2″ 1/4″ 5/16″ 3/8″ 1/2″ 5/8″ 3/4″ 1″ 1.1/4″ |
36.5 36.5 36.5 37 38 38 44 46 51 51 66 72 72 33.5 33.5 33.5 33.5 38 40 40 42 |
15 20 20 24 26 29 39 46 55 64 45.5 54.5 63.5 15 18 18 22 25 28 35 42 |
10 14 14 18 21 24 31 38 47 56 38 44 50 11 13 15 18 20 24 30 38 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for spiral hoses, change the code to 60012-XX-XX. 3. D: SAE general type;
G: SAE high pressure type; K: coal standard.
