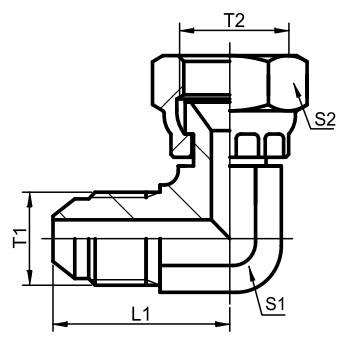

90° Metric Male 74° Cone / Metric Female 74° Seat
| PART NO. | THREAD | DIMENSIONS | Mpa | |||
| T1 | T2 | L1 | S1 | 2 | ||
| 2Q9-14 2Q9-16 2Q9-18 2Q9-22 2Q9-27 2Q9-30 2Q9-33 209-36 2Q9-39 2Q9-45 |
M14X1.5 M16x1.5 M18x1.5 M22X1.5 M27X1.5 M30x1.5 M33X2 M36X2 M39X2 M45X2 |
M14x1.5 M16x1.5 M18x1.5 M22X1.5 M27X1.5 M30x1.5 M33X2 M36X2 M39X2 M45X2 |
28.5 30.5 31.5 34 37.5 42.8 45.5 47 50 54 |
14 16 19 22 27 30 33 36 41 46 |
19 22 24 27 32 36 41 41 46 55 |
35 25 25 20 20 20 16 16 12.5 10 |
