Product Description

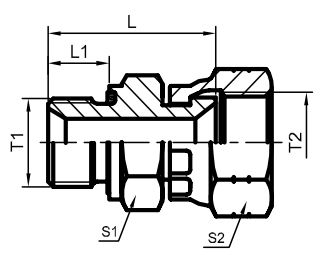

BSP Male Captive Seal / JIC Female 74°Seat

PART NO.	THREAD		DIMENSIONS
	T1	T2	L1	L	S1	2
2BJ-02-04WD 2BJ-04-05WD 2BJ-04-06WD 2BJ-04-08WD 2BJ-04WD 2BJ-06-08WD 2BJ-06WD 2BJ-08-06WD 2BJ-08-10WD 2BJ-08WD 2BJ-12-16WD 2BJ-12WD 2BJ-16WD 2BJ-20-16WD 2BJ-20WD 2BJ-24WD	G1/8″X2B G1/4″X19 G1/4″X19 G1/4″X19 G1/4″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″X14 G1/2″X14 G3/4″X14 G3/4″X14 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11	7/16″X20 1/2″X20 9/16″X18 3/4″X16 7/16″X20 3/4″X16 9/16″X18 9/16″X18 7/8″X14 3/4″X16 1.5/16″X12 1.1/16X12 1.5/16″X12 1.5/16 12 1.5/8″X12 1.7/8″X12	8 12 12 12 12 12 12 14 14 14 16 16 18 20 20 22	23.5 28.5 28.5 30.5 28 33 31 33.5 38 37.5 42.5 42.5 46.5 50.5 54.5 58.5	14 19 19 19 19 22 22 27 27 27 32 32 41 50 50 55	14 17 19 24 14 24 19 19 27 24 41 32 41 41 50 55
