Japanese metric internal thread 60° internal cone surface

Get prices +86 18331807383

Product Description

Japanese metric internal thread 60° internal cone surface

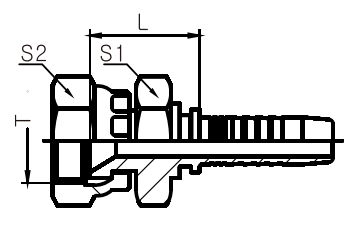

Code PART NO.	Thread T	Hose bore		Dimensions
	Thread T	Nominal inner diameter DN	Dash number	L	S1	2
28611-12-04 28611-14-04 28611-14-06 28611-16-04 28611-16-05 28611-16-06 28611-18-06 28611-18-08 28611-20-08 28611-22-08 28611-24-08 28611-24-10 28611-27-10 28611-30-12 28611-33-12 28611-33-16 28611-36-20	M12X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M20X1.5 M22X1.5 M24X1.5 M24X1.5 M27X1.5 M30X1.5 M33X1.5 M33X1.5 M36X1.5	6 6 10 6 8 10 10 13 13 13 13 16 16 19 19 25 32	4 4 6 4 5 6 6 8 8 8 8 10 10 12 12 16 20	20.5 21 21 24 24 24 25 25.5 28.5 25.5 28 28.5 28.5 28.5 31 32 35.5	17 19 19 22 22 22 24 24 27 27 32 32 32 36 41 41 46	17 19 19 22 22 22 24 24 27 27 32 32 32 36 41 41 46
