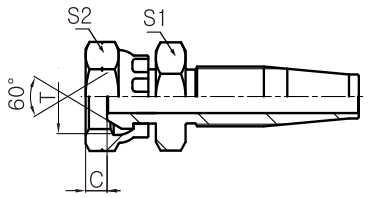

British Standard Internal Thread 60° External Taper Surface
| Code PART NO. |
Thread T | Hose Bore | Dimensions | |||||
| THREAD T | Nominal Inner Diameter DN | Designation DASH | B | H | S1 | S2 | ||
| 21698D-04-04(R5) 21698D-06-05(R5) 21698D-06-06(R5) 21698D-08-08(R5) 21698D-12-10(R5) 21698D-12-12(R5) 21698D-16-16(R5) 21698D-20-20(R5) 21698D-24-24(R5) 21698D-32-32(R5) |
1/4″X18 3/8″X18 3/8″X18 1/2″X14 3/4″X14 3/4″X14 1″X11.5 1.1/4″X11.5 1.1/2″X11.5 2″X11.5 |
6 8 10 12 16 20 25 32 40 50 |
4 5 6 8 10 12 16 20 24 32 |
4.6 6 6 7.5 8.9 8.9 10.5 11.2 11.2 11.2 |
40.5 43 45.3 53.2 53.5 69.1 75 86 101.5 124.5 |
14 14 17 19 24 27 32 41 46 65 |
19 22 22 27 32 32 41 50 55 70 |
|
