20518D-R5

Metric internal thread 24° tapered with O-ring light series

Get prices +86 18331807383

Product Description

Metric internal thread 24° tapered with O-ring light series

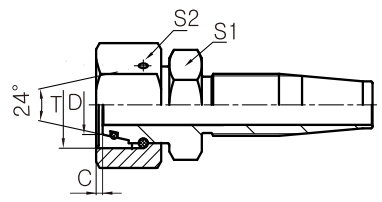

Code PART NO.	Thread T	Hose Bore		Tube Outer Diameter D	Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash	TUBE O.D	C	S1	S2
20518D-16-04(R5) 20518D-16-05(R5) 20518D-18-04(R5) 20518D-18-06(R5) 20518D-20-06(R5) 20518D-22-06(R5) 20518D-24-08(R5) 20518D-30-10(R5) 20518D-30-12(R5) 20518D-36-12(R5) 20518D-36-16(R5) 20518D-42-16(R5) 20518D-42-20(R5) 20518D-52-20(R5) 20518D-52-24(R5)	M14X1.5 M16X1.5 M18X1.5 M18X1.5 M20X1.5 M22X1.5 M24X1.5 M30X2 M30X2 M36X2 M36X2 M42X2 M42X2 M52X2 M52X2	5 6 5 8 8 8 11 13 16 16 22 22 28 28 35	4 5 4 6 6 6 8 10 12 12 16 16 20 20 24	8 8 10 10 12 14 16 20 20 25 25 30 30 38 38	1.8 1.8 1.5 1.5 2.5 3 3 2.5 2.5 3.2 3.2 3.9 3.9 4.5 4.5	14 14 17 17 17 19 22 27 27 36 36 41 41 50 50	19 19 22 22 24 27 30 36 36 41 41 50 50 60 60
