20491-T
90° bend metric external thread 24° tapered with O-ring light series
90° bend metric external thread 24° tapered with O-ring light series
| Code PART NO. |

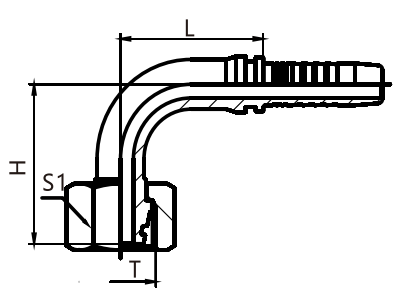

Thread T | Hose Bore | Tube Outer Diameter | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | TUBE O.D | L | H | S1 | |
| 20491-12-04W 20491-14-04T 20491-14-05W 20491-14-06W 20491-16-04T 20491-16-05T 20491-16-06W 20491-18-05T 20491-18-06T 20491-18-08W 20491-22-08T 20491-22-10W 20491-26-10T 20491-26-12W 20491-30-10T 20491-30-12T 20491-30-16W 20491-36-12T 20491-36-16T 20491-36-20W 20491-45-16T 20491-45-20T 20491-45-24W 20491-52-20T 20491-52-24T 20491-52-32W |
M12X1.5 M14X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M18X1.5 M22X1.5 M22X1.5 M26X1.5 M26X1.5 M30X2 M30X2 M30X2 M36X2 M36X2 M36X2 M45X2 M45X2 M45X2 M52X2 M52X2 M52X2 |
6 6 8 10 6 8 10 8 10 13 13 16 16 19 16 19 25 19 25 32 25 32 38 32 38 51 |
4 4 5 6 4 5 6 5 6 8 8 10 10 12 10 12 16 12 16 20 16 20 24 20 24 32 |
6 8 8 8 10 10 10 12 12 12 15 15 18 18 22 22 22 28 28 28 35 35 35 42 42 42 |
32 32 32.5 36.5 32 32.5 36.5 32.5 36.5 44.5 44.5 55 55 62 55 62 74 62 74 91.5 74 91.5 108 91.5 108 133.8 |
30.5 30.5 33 36 33 33 36 36 36 40.5 40.5 51.5 51.5 56 56 56 68.5 68.5 68.5 78.5 78.5 78.5 95 78.5 95 130.5 |
14 17 17 17 19 19 19 22 22 22 27 27 32 32 36 36 36 41 41 41 50 50 50 60 60 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20492-XX-XX.
