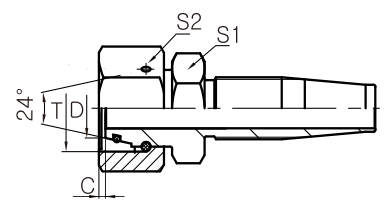

Metric internal thread 24° tapered with O-ring light series
| Code PART NO. |
Thread T | Hose Bore | Tube Outer Diameter D | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash | TUBE O.D | C | S1 | S2 | |
| 20418D-14-04(R5) 20418D-16-05(R5) 20418D-18-06(R5) 20418D-2-08(R5) 20418D-26-10(R5) 20418D-30-12(R5) 20418D-36-16(R5) 20418D-45-16(R5) 20418D-45-20(R5) 20418D-52-24(R5) |
M14X1.5 M16X1.5 M18X1.5 M22X4.5 M26X1.5 M30X2 M36X2 M45X2 M45X2 M52X2 |
5 6 8 11 13 16 22 22 28 35 |
4 5 6 8 10 12 16 16 20 24 |
8 10 12 15 18 22 28 35 35 42 |
1.4 2.1 1.8 3 2.1 3.8 4.5 4 4 4 |
12 14 17 19 27 30 36 41 41 50 |
17 19 22 27 32 36 41 50 50 60 |
