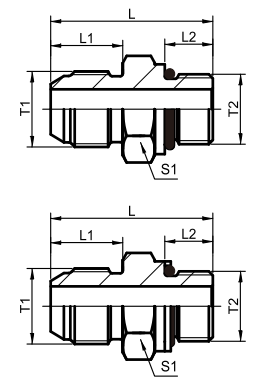

JIC Metric Male 60° Cone/Metric Male S-Series ISO 6149-2
| PART NO. | THREAD | DIMENSIONS | Mpa | |||||
| T1 | T2 | L1 | L2 | L | 1 | |||
| 1KH-14-12 1KH-14 1KH-16-14 1KH-18-14 1KH-18-16 1KH-18-20 1KH-20-18 1KH-22-20 1KH-24-20 1KH-24-22 1KH-30-27 1KH-33 1KH-36-33 |
M14X1.5 M14X1.5 M16X1.5 M18X1.5 M18X1.5 M18X1.5 M20X1.5 M22X1.5 M24X1.5 M24X1.5 M30X1.5 M33X1.5 M36X1.5 |
M12X1.5 M14X1.5 M14X1.5 M14X1.5 M16X1.5 M20X1.5 M18X1.5 M20X1.5 M20X1.5 M22X1.5 M27X2 M33X2 M33X2 |
17 17 18 18 18 18 20 20 21.5 21.5 26 30 33 |
11 11 11 11 12.5 14 14 14 14 15 18.5 18.5 18.5 |
39 39 40 40 42 45 47 47 48.5 50 60.5 65 68 |
17 19 19 19 22 27 24 27 27 27 32 41 41 |
34.5 34.5 34.5 34.5 34.5 34.5 34.5 34.5 27.5 27.5 20.5 20.5 17 |
|
Note:If you interested to order the adapter with retainer ring please insert suffix”DQ” after our .for example 1KH-30-27DQ.
