Product Description

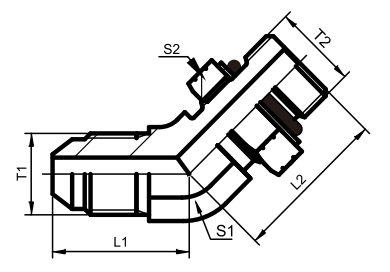

45°JIC Male 74° Cone / Metric Male Adjustable Stud End L-Series ISO 6149-3

PART NO.	THREAD		DIMENSIONS				WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	1	S2	g
1JH4-04-10OG 1JH4-04-12OG 1JH4-04-14OG 1JH4-05-12OG 1JH4-05-14OG 1JH4-06-14OG 1JH4-06-16OG 1JH4-08-16OG 1JH4-08-18OG 1JH4-10-16OG 1JH4-10-18OG 1JH4-10-22OG 1JH4-12-22OG 1JH4-12-27OG 1JH4-16-27OG 1JH4-16-33OG 1JH4-20-42OG 1JH4-24-48OG	7/16″X20 7/16″X20 7/16″X20 1/2″X20 1/2″X20 9/16″X18 9/16″X18 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″X12	M10X1 M12X1.5 M14X1.5 M12X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M18X1.5 M16X1.5 M18X1.5 M22X1.5 M22X1.5 M27X2 M27X2 M33X2 M42X2 M48X2	21.5 21.5 22.3 22.3 22.3 22.3 22.3 26.8 26.8 31 31 31 35.5 32.5 38.5 38.5 43 49	23.5 27.5 28.3 28.3 28.3 28.3 29 30 31 31 32 33 34.5 39.5 41 41.5 45 49.5	11 11 14 14 14 14 16 19 19 22 22 22 27 27 33 33 41 48	14 17 19 17 19 19 22 22 24 22 24 27 27 32 32 41 50 55	26 36 40 38 44 47 58 79 93 106 115 136 182 223 296 345 575 766	31.5 31.5 31.5 31.5 31.5 31.5 25 25 25 24 24 24 24 16 16 16 16 14
