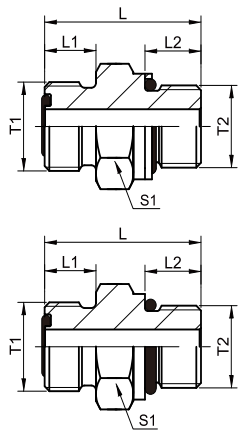

Metric Male O-Ring / Metric Male Adjustable Stud End S-Series ISO 6149
| PART NO | THREDA | DIMENSIONS | W.P | ||||
| T1 | T2 | L | L1 | L2 | 1 | Mpa | |
| 1EH-12-10 1EH-14-12 1EH-16-14 1EH-18-16 1EH-22-18 1EH-27-22 1EH-30-27 1EH-36-33 1EH-39-33 1EH-42 1EH 45-42 1EH-52-48 |
M12x1.25 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M27x1.5 M30x1.5 M36x2 M39x2 M42x2 M45x2 M52x2 |
M10X1 M12X1.25 M14X1.5 M16X1.5 M18X1.5 M22X1.5 M27X2 M33X2 M33X2 M42X2 M42X2 M48X2 |
28 28 28 31.5 34.5 38 43.5 47.5 49.5 54 54 58.5 |
11 11 11 11 12 13 14 16 18 20 21 22 |
9.5 11 11 12.5 14 15 18.5 18.5 18.5 19 19 21.5 |
14 17 19 22 24 30 32 41 41 50 50 55 |
63 63 63 63 63 40 40 40 25 25 2525 |
Note:If you interested to order the adapter with retainer ring please insert suffix:“DQ”after our ,for example 1EH-30-27DQ.
