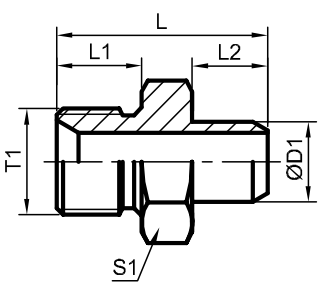

BSP Male Double Use For 60°Seat Or Bonded Seal /Butt-Weld Tube
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | |||
| T1 | D1 | L1 | L2 | L | 1 | |
| 1BW-04-10 1BW-06-14 1BW-08-18 1BW-12-22 1BW-12-28 1BW-16-28 1BW-16-30 1BW-20-34 1BW-20-36 1BW-20-42 1BW-24-36 1BW-24-42 1BW-24-50 |
G1/4″X19 G3/8″X19 G1/2″X14 G3/4″X14 G3/4″X14 G1″X11 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11 G1.1/2″X11 G1.1/2″X11 |
10 14 18 22 28 28 30 34 36 42 36 42 50 |
12 13.5 16 18.5 18.5 20.5 20.5 20.5 20.5 20.5 23 23 23 |
7 8 10 10 12 12 12 14 14 16 14 16 16 |
25 29.5 36 39.5 41.5 45.5 45.5 49.5 49.5 51.5 52 54 54 |
19 22 27 32 32 41 41 50 50 50 55 55 55 |
