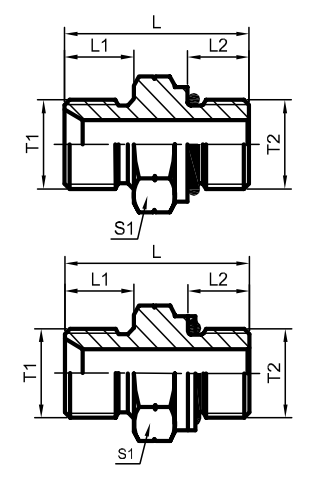

BSP Male 60°Seat / BSP Male O-Ring
PART NO. | THREAD | DIMENSIONS | ||||
T1 | T2 | L1 | L2 | L | S2 | |
1BG-02 1BG-04 1BG-04-06 1BG-06 1BG-06-04 1BG-06-08 1BG-08 1BG-08-06 1BG-08-12 1BGm10-08 1BG-12 1BG-12-08 1BG-16 1BG-16-12 1BG-20 1BG-24 |
G1/8″X28 G1/4″X19 G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″X14 G1/2″X14 G5/8″X14 G3/4″X14 G3/4″X14 G1″X11 G1*X11 G1.1/4″X11 G1.1/2″X11 |
G1/8″X28 G1/4″X19 G3/8″X19 G3/8″X19 G1/4″X19 G1/2″X14 G1/2″X14 G3/8″X19 G3/4″X14 G1/2″X14 G3/4″X14 G1/2″X14 G1″X11 G3/4″X14 G1.1/4″X11 G1.1/2″X11 |
10 12 12 13.5 13.5 13.5 16 16 16 17.5 18.5 18.5 20.5 20.5 20.5 23 |
9.5 11 11.5 11.5 11 14 14 11.5 15.5 14 15 14 18 15.5 20 21.5 |
27 31 32 33 32.5 38.5 41 36 45.5 44.5 46 45.5 53 52 58.5 62.5 |
14 19 22 22 22 27 27 27 32 30 32 32 41 41 50 55 |
Note:If you interested to order the adapter with retainer ring please insert suffx“DQ” after our ,for example 1BG-16-12DQ.
