KEY PERFORMANCE
● EN/DIN and new SAE rated working pressures
● Appearance:Wrap surface (with the inner diameter of the hose less than 25.4mm, you can choose smooth or Wrap surface)

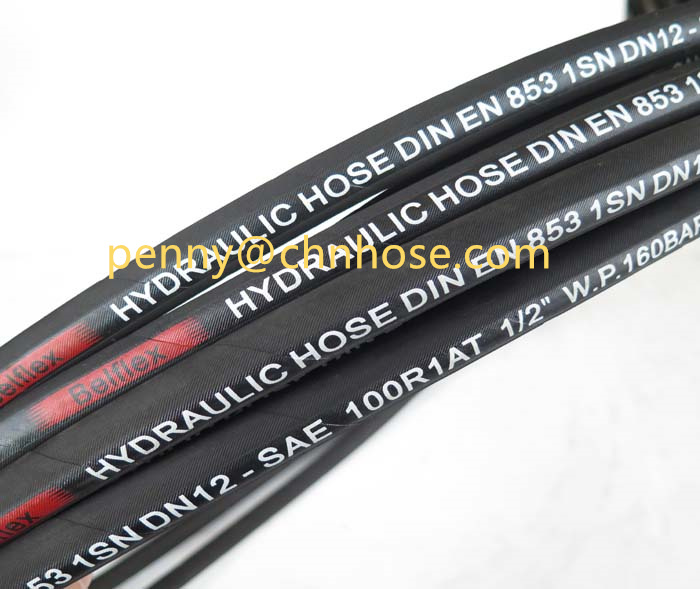

● Branding:Printing and indelible branding with embossed technology or code-spurting

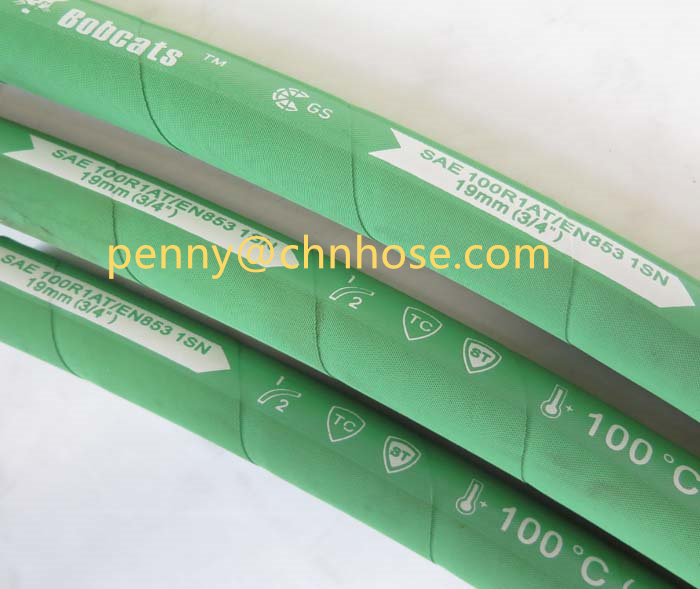

● Colour: Black ,red ,blue,yellow,green,gray
● Hose characteristics: strong bearing pressure, not easy to wear, oil resistance, high temperature resistance; small deformation under working pressure, good pulse performance, high temperature resistance and low temperature resistance can be customized.
APPLICATIONS
● Low-medium pressure lines in extreme temperature conditions (foundries, com-pressors, hydraulics within engine compartments, etc.)
● Mineral oils, glycols and polyglycols, transmission fluids, air with oil vapours, mineral oils in aqueous emulsion (up to 212°F 100°C)
● Threading pipes for construction machinery and subway lines

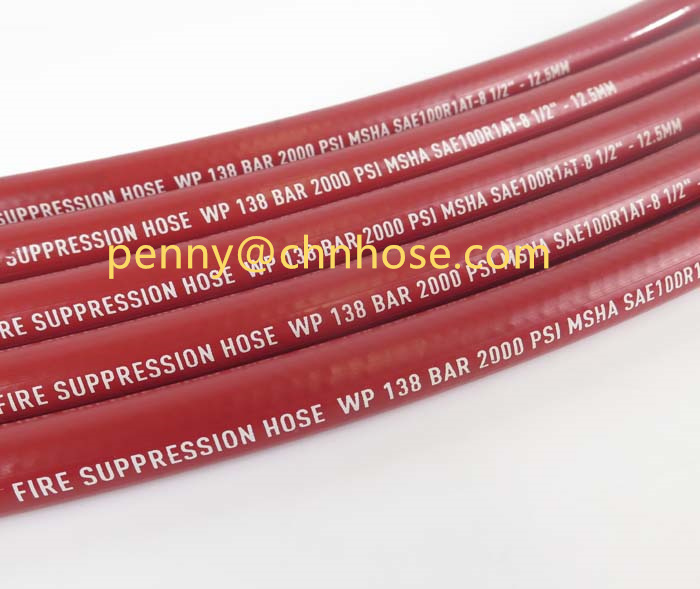

● Special red fire extinguishing pipe for fire fighting system
| YATAI PART.REF. | HOSE SIZE | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | |||
| inch | mm | mm | bar | psi | bar | psi | mm | kg/m | |
| WB1SN-3 | 3/16“ | 4.8 | 12 | 250 | 3600 | 1000 | 14400 | 90 | 0.19 |
| WB1SN-4 | 1/4” | 6.4 | 13.2 | 225 | 3250 | 900 | 13000 | 100 | 0.22 |
| WB1SN-5 | 5/16“ | 7.9 | 15.2 | 215 | 3100 | 860 | 12400 | 115 | 0.26 |
| WB1SN-6 | 3/8“ | 9.7 | 17.4 | 180 | 2600 | 720 | 10400 | 125 | 0.34 |
| WB1SN-8 | 1/2“ | 12.7 | 20.5 | 160 | 2300 | 640 | 9200 | 180 | 0.41 |
| WB1SN-10 | 5/8“ | 16 | 23.7 | 130 | 1900 | 520 | 7600 | 205 | 0.51 |
| WB1SN-12 | 3/4“ | 19.1 | 27.7 | 105 | 1500 | 420 | 6000 | 240 | 0.60 |
| WB1SN-16 | 1“ | 25.4 | 33.7 | 97 | 1260 | 388 | 5040 | 300 | 0.85 |
| WB1SN-20 | 1.1/4“ | 31.8 | 42.5 | 62 | 900 | 248 | 3600 | 420 | 1.22 |
| WB1SN-24 | 1.1/2“ | 38.1 | 48.5 | 50 | 720 | 200 | 2880 | 500 | 1.41 |
| WB1SN-32 | 2” | 50.8 | 62 | 40 | 580 | 160 | 2320 | 630 | 1.88 |
| WB1SN-40 | 2.1/2“ | 63.5 | 75.5 | 20 | 290 | 80 | 1160 | 780 | 2.30 |
| WB1SN-48 | 3“ | 76 | 88 | 15 | 210 | 60 | 840 | 960 | 2.60 |
| WB1SN-56 | 3.1/2“ | 90 | 102 | 12 | 175 | 48 | 700 | 1150 | 3.50 |
| WB1SN-64 | 4“ | 102 | 116 | 10 | 145 | 40 | 580 | 1350 | 4.20 |
● TEMPERATURE RANGE：-40°F -212°F/-40°C-100°C
● INSERT：SHF TYPE

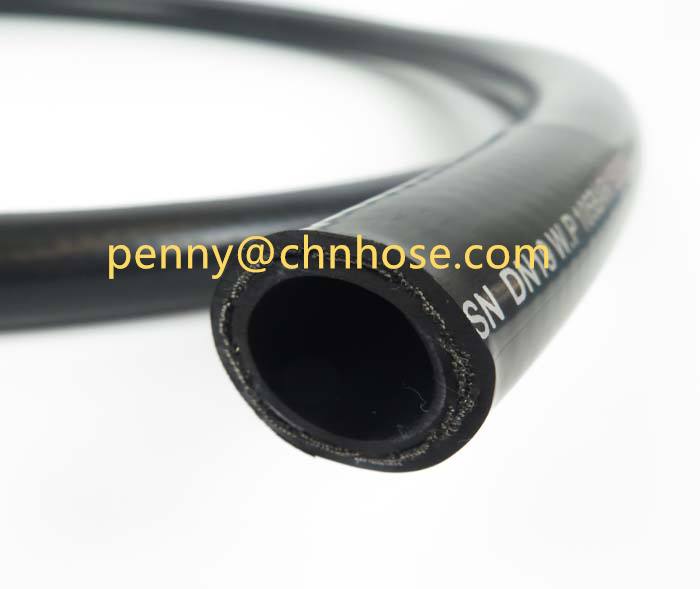

● TUBE：Oil resistant synthetic rubber
● REINFORCEMENT：One high tensile steel braid
● COVER：Synthetic rubber, with high ozone, weather resistance and heat resistance
● APPLICATION STANDARD：EN 853 1SN；SAE 100 R1AT；ISO 1436 1SN/R1AT
