Technical Parameters:

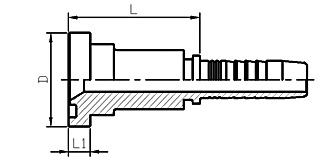

HOSE BORE | DIMENSIONS | |||||
| PART NO. | FLANGE SIZE | DN | DASH | L | D | L1 |
| 87611-08-08 | 1/2＂ | 13 | 8 | 47 | 31.7 | 7.75 |
| 87611-12-10 | 3/4＂ | 16 | 10 | 51 | 41.3 | 8.76 |
| 87611-12-12 | 3/4＂ | 19 | 12 | 51 | 41.3 | 8.76 |
| 87611-16-12 | 1＂ | 19 | 12 | 56 | 47.6 | 9.53 |
| 87611-16-16 | 1＂ | 25 | 16 | 57 | 47.6 | 9.53 |
| 87611-16-20 | 1＂ | 32 | 20 | 58 | 47.6 | 9.53 |
| 87611-20-16 | 1.1/4＂ | 25 | 16 | 65 | 54 | 10.29 |
| 87611-20-20 | 1.1/4＂ | 32 | 20 | 66 | 54 | 10.29 |
| 87611-24-20 | 1.1/2＂ | 32 | 20 | 75 | 63.5 | 12.57 |
| 87611-24-24 | 1.1/2＂ | 38 | 24 | 75 | 63.5 | 12.57 |
| 87611-32-24 | 2＂ | 38 | 24 | 85 | 79.4 | 12.57 |
| 87611-32-32 | 2＂ | 51 | 32 | 85 | 79.4 | 12.57 |
Note：1、For use with braided hoses. 2、If use with spiral hoses,hose fitting series number is 87612-XX-XX.
