Exhibition arrangement: The 22nd Shanghai International Automotive Air Conditioning and Thermal Management Technology Exhibition is about to be held
Time and location: October 21-23, 2024, Shanghai New International Expo Center
Booth number: N3 K01, sincerely welcome everyone to communicate in advance and make an appointment for exchange.

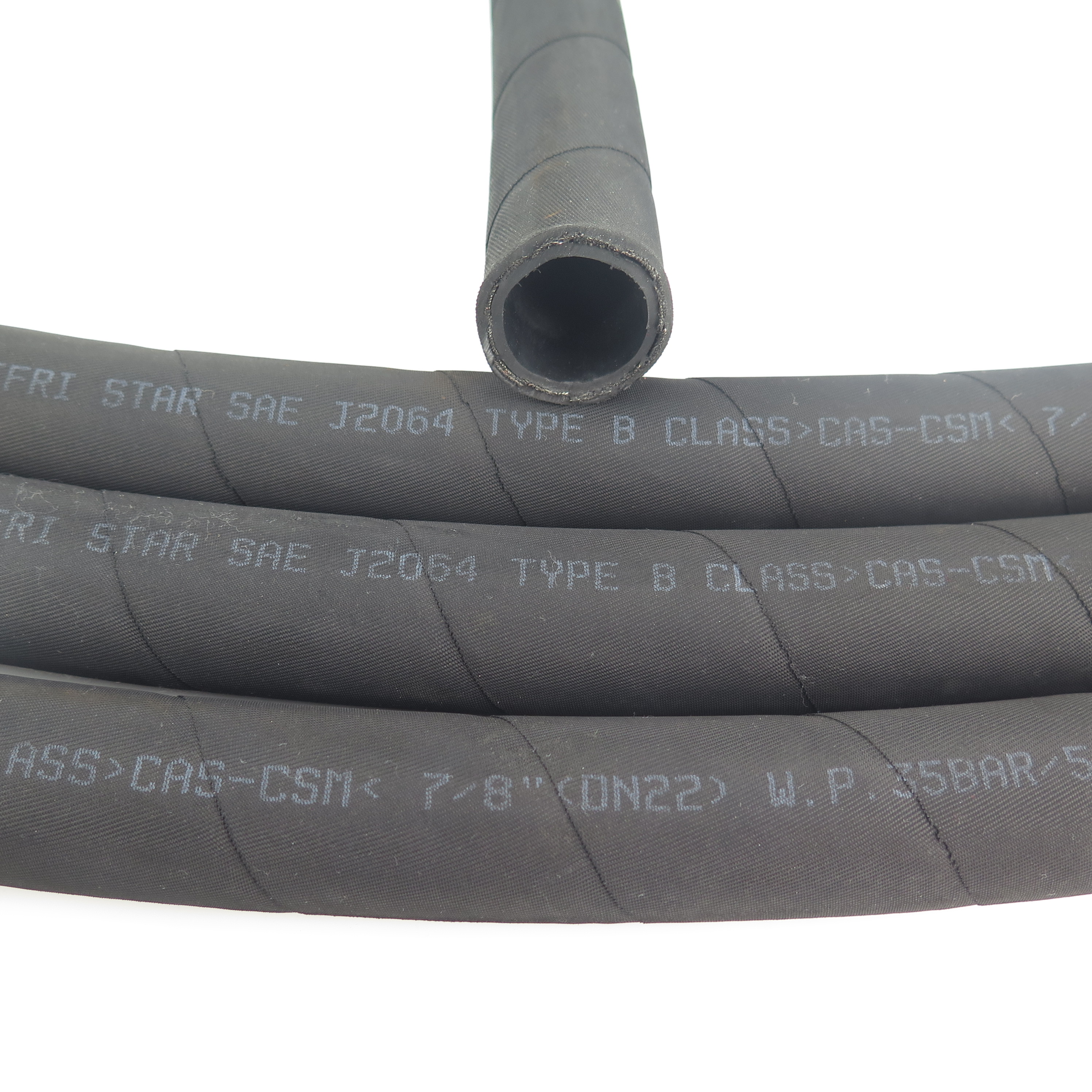

1.SAE J2064 Type B Mobile refrigeration system air conditioning hose
Inner & outer rubbers are CIIR with low refrigerant penetration, heat-resistant and weather-resistant EPDM, CSM, reinforcement: one layer of copper-plated steel wire braid
Working temperature: -40℃~+135℃
Application: bus, air conditioning system of off-road equipment
2.SAE J2064 Type C、Type E AC Hose
The inner & outer rubber is pulse-resistant, weather-resistant, ozone-resistant and low-permeability EPDM; shielding layer: PA
Temperature range: -40℃~+135℃
Series: A10, A20, 4890, five-layer winding, etc.
Application: used in air conditioning systems of various trucks, cars and engineering vehicles, suitable for refrigerants: R12, R134a, 1234yf
3.SAE J1402 Air Brake Hose
Inner & outer rubber: EPDM; Reinforcement layer: one layer of polyester filament braid; Temperature range: -40°C~+135°C
ID: 3/16" to 5/8"
Applicable to large and medium-sized trucks, large and medium-sized buses, light trucks, heavy trucks, and large coaches commonly used in compressed air brake systems
4.SAE J1402 Cover Braided Air Brake Hose
Features: withstand high temperature and high pressure, will not break due to pulling or impact. Adaptable to different models and occasions
Inner rubber: EPDM; Reinforcement: one layer of copper-plated steel wire braiding; Outer rubber: one layer of polyester filament braiding
Temperature range: -40°C~+135°C
5.SAE J20 R1 Radiator Hose
EPDM rubber inside and outside, wire curtain winding structure, working temperature: -40°C~+150°C
or silicone rubber, working temperature -40°C to 250°C
Application: Suitable for heating system in vehicle cooling circulation system, can customize elbow and special-shaped pipe oil
6.SAE J20 R3 Heater Hose
Internal & external rubber: EPDM, reinforcement: one layer of polyester filament braiding
Working temperature: -40°C~+180°C
Application: Suitable for heating system in vehicle cooling circulation system, can customize bent pipes and special-shaped pipes.
7.SAE J188/J189 Power Steering Hose
Inner rubber: CSM; Outer rubber: heat-resistant, weather-resistant, high-pressure pulse-resistant CSM
Application: Suitable for vehicles with power steering systems, transmitting pressure in power steering devices; Temperature range: -40℃~+135℃
8.SAE J1532 Transmission Oil Cooler Line
Inner rubber: HNBR; Reinforcement: one layer of polyester filament braid; Outer rubber: HNBR
Application: used for oil inlet and oil return pipelines of automobile automatic transmission system; Temperature range: -40°C~+160°C

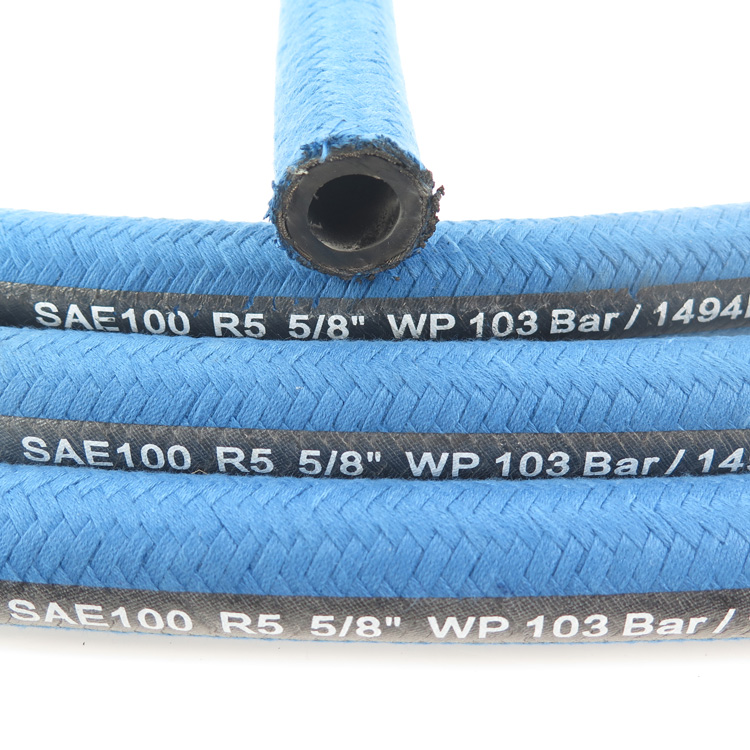

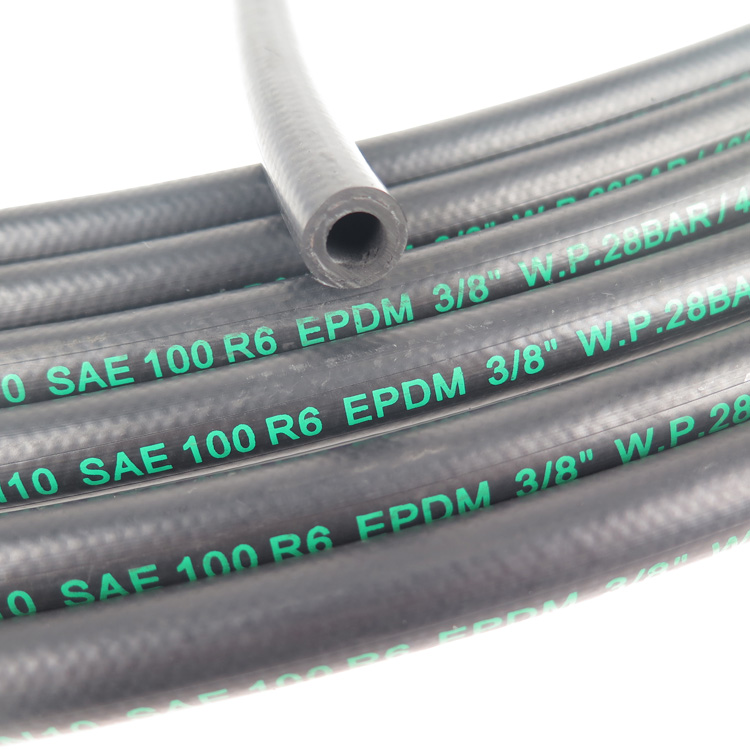

9.SAE100 R1/R2/R3/R5/R6 High Temp Resistant Oil Hose 135℃
Application: transporting petroleum-based hydraulic oil, hot air, hot water and other media, can be customized in black or color, outer braided wire structure
Reinforcement: one/two layers of polyester filament or steel wire braiding
For better temperature resistance, please contact us for customized ACM 150℃ high temperature oil hose

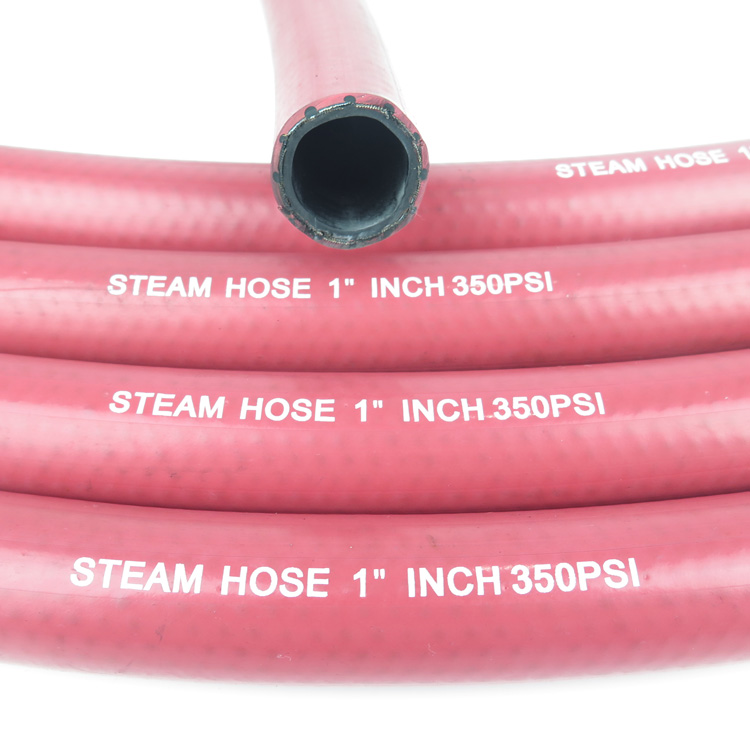

10.SAE 100 R1/R2 Steam Hose
Internal & external rubber: EPDM, reinforcement: one/two layers of copper-plated steel wire braid, polyester filament
Used to transport steam, hot water, hot air and other media; mostly black or red in color

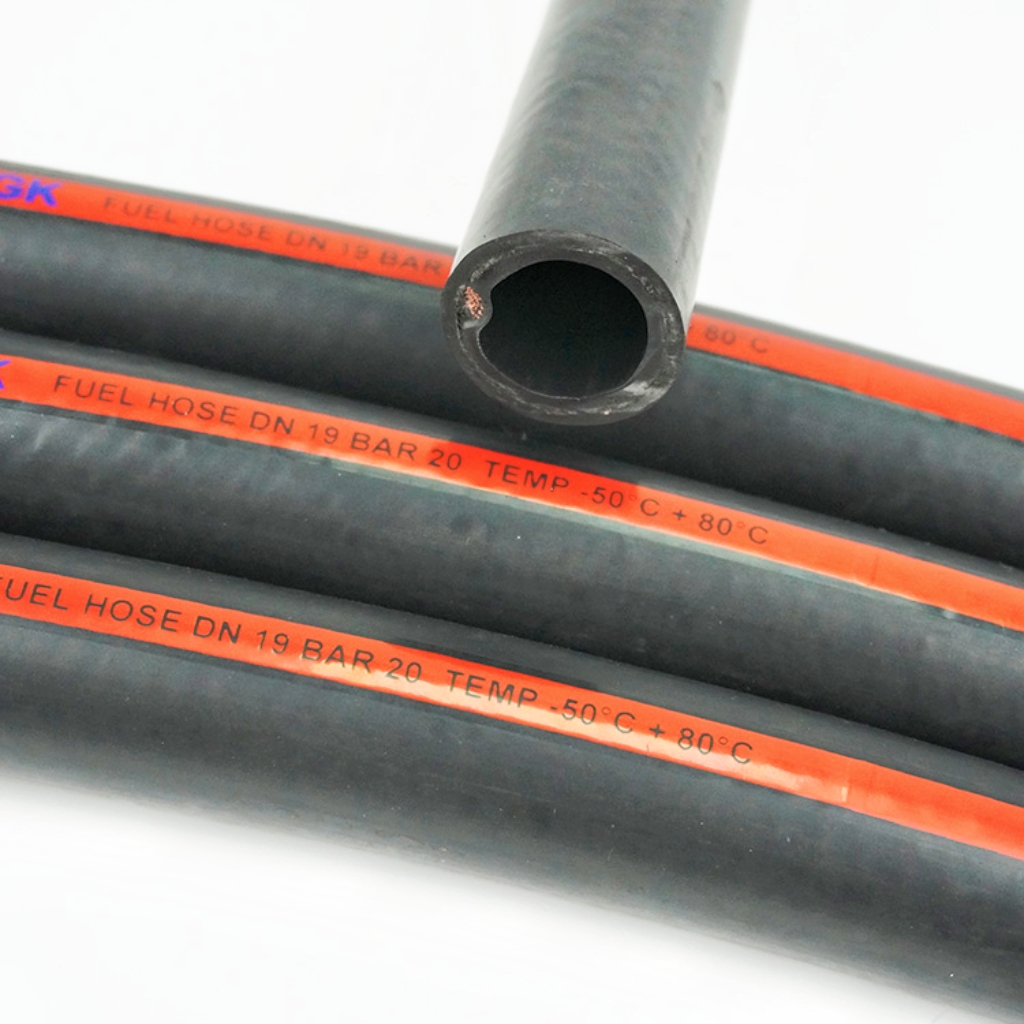

11.EN1360 Fuel Dispenser Hose
Application: In low temperature, refueling equipment and vehicles transporting aviation kerosene, ethanol, gasoline, diesel
Inner and outer rubber: ECO; Reinforcement: polyester filament braid + copper wire or one layer of copper-plated steel wire braid
Temperature options: -45℃, -50℃, -55℃
12. Urea Solution Hose
Liner: PE; Internal and external rubber: EPDM; Reinforcement: one layer of copper-plated steel wire braid
Application: used for diesel vehicles to transport DEF urea solution, helping diesel vehicles meet emission regulations and purify the environment; Temperature range: -40°C~+150°C
13.SAE 100 R14Teflon Hose
PTFE inner tube: straight tube, corrugated tube, imported raw materials; outer layer SS304 or SS316 braided, support outer coating PVC, PU
Application: used for strong acid, strong alkali, coolant, ethylene glycol, methylene glycol, diesel, gasoline and other fluids
Contact me if you need order or inquiry：
Technology Consulting：Penny Chen
Tel：+86 18331807383 （same as wechat）
QQ: 2673360390
Email: penny@chnhose.com
