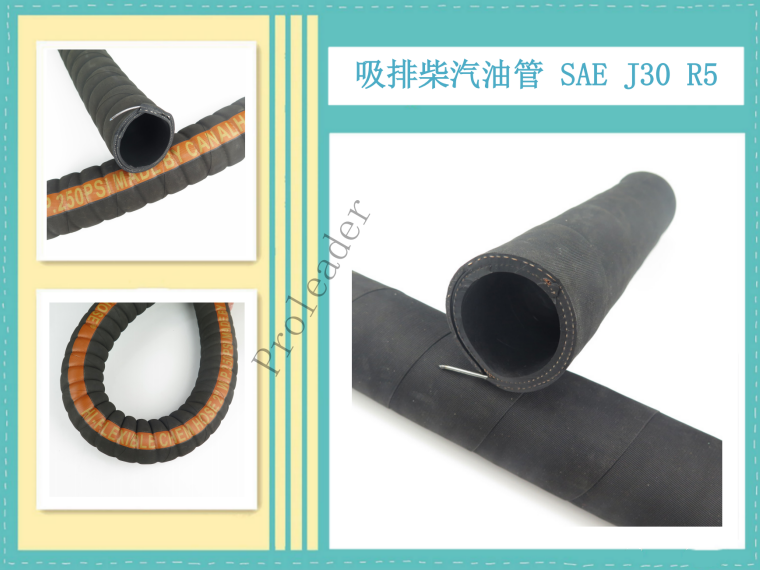

Inner rubber layer: NBR nitrile rubber
Reinforcement layer: high strength polyester cord plus spiral steel wire plus conductive copper wire
Outer rubber layer: weather-resistant and oil-resistant CR neoprene
Application: suitable for industrial suction diesel, gasoline
Temperature range:-30°C ~ 100°C

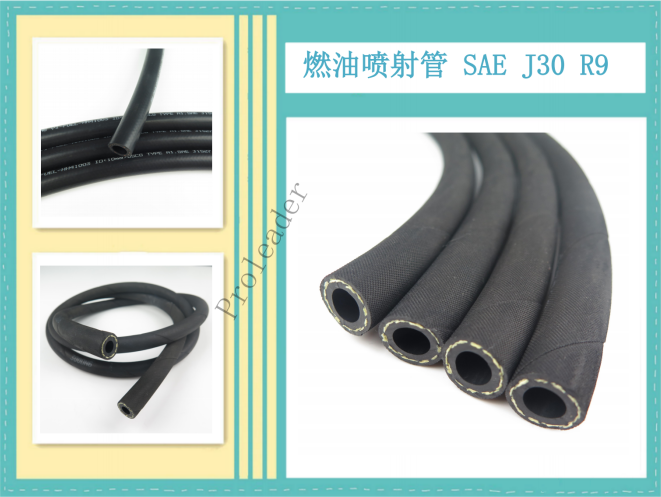

Inner rubber layer: NBR nitrile rubber
Reinforcement layer: a layer of polyester filament woven
Outer rubber layer: weather-resistant and oil-resistant CR neoprene
Application: Suitable for conveying fuel in automobile pipelines
Temperature range:-40°C ~ 100°C

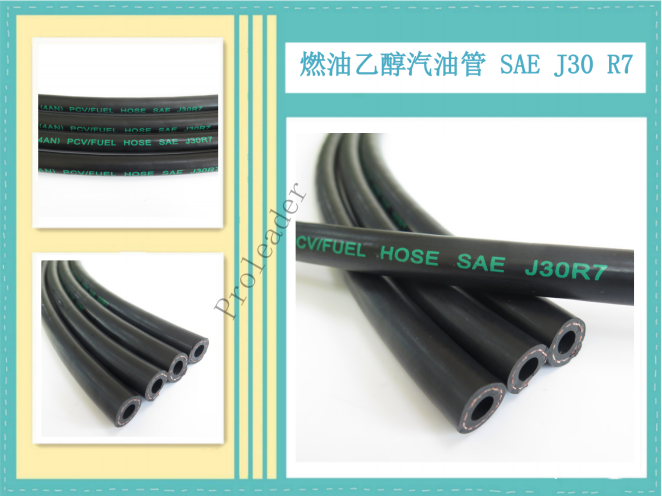

Inner rubber layer: NBR nitrile rubber
Reinforcement layer: a layer of polyester filament woven
Outer rubber layer: weather-resistant and oil-resistant CR neoprene
Application: Suitable for conveying fuel in the crankcase of the fuel system or the internal combustion engine of the power locomotive
Temperature range:-40 ℃ ~ 125 ℃

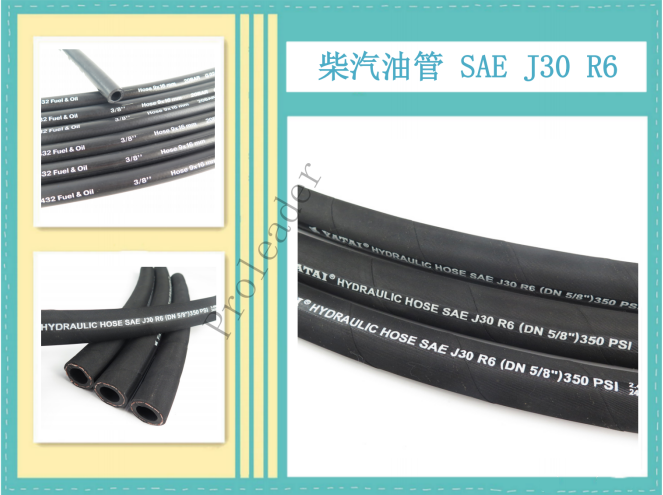

Shield: Very low permeability FKM Viton
Inner rubber layer: NBR nitrile rubber
Reinforcement layer: a layer of aramid thread weaving
Outer rubber layer: weather-resistant and oil-resistant CR neoprene
Application: Suitable for continuous contact with gasoline and other liquefied petroleum inside and outside the hose
Temperature range:-40 ℃ ~ 150 ℃
