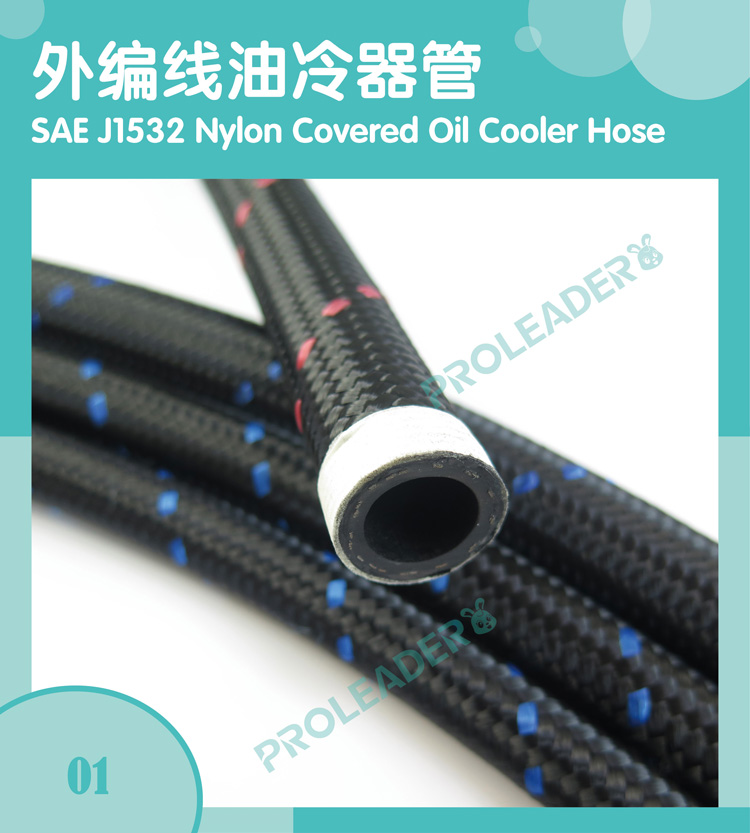

NO.1 SAE J1532 Nylon Covered Oil Cooler Hose
Tube: NBR
Reinforcement: SS 304 braid
Cover: One layer textile braid
Size range：AN4 ~ AN16
Application: Used to refit car oil cooler accessories
Temperature Range: -40°C~+135°C

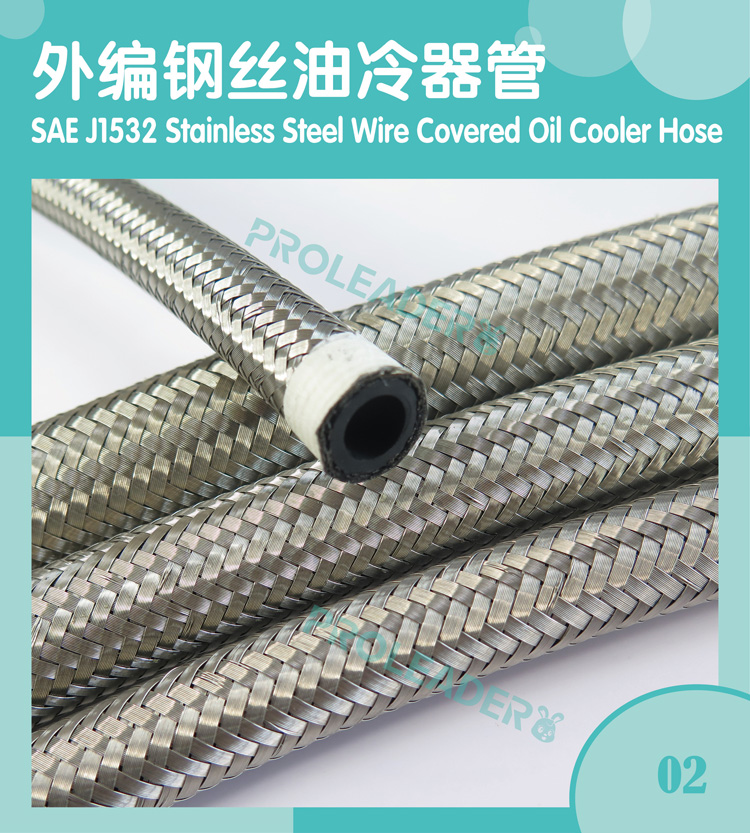

NO.2 SAE J1532 Stainless Steel Wire Covered Oil Cooler Hose
Tube: NBR
Reinforcement: SS 304 braid
Cover: SS 304 braid
Application: Used to refit car oil cooler accessories
Temperature Range: -40°C~+135°C
NO.3 SAE J1401 Hydraulic Brake Hose
Tube: NBR
Reinforcement: Two layer textile braid or two high tensile steel wire braid
Size range：1/8” - 1/4”
Application: Used to transmit pressure to automobile hydraulic brake system
Temperature Range: -40°C~+120°C

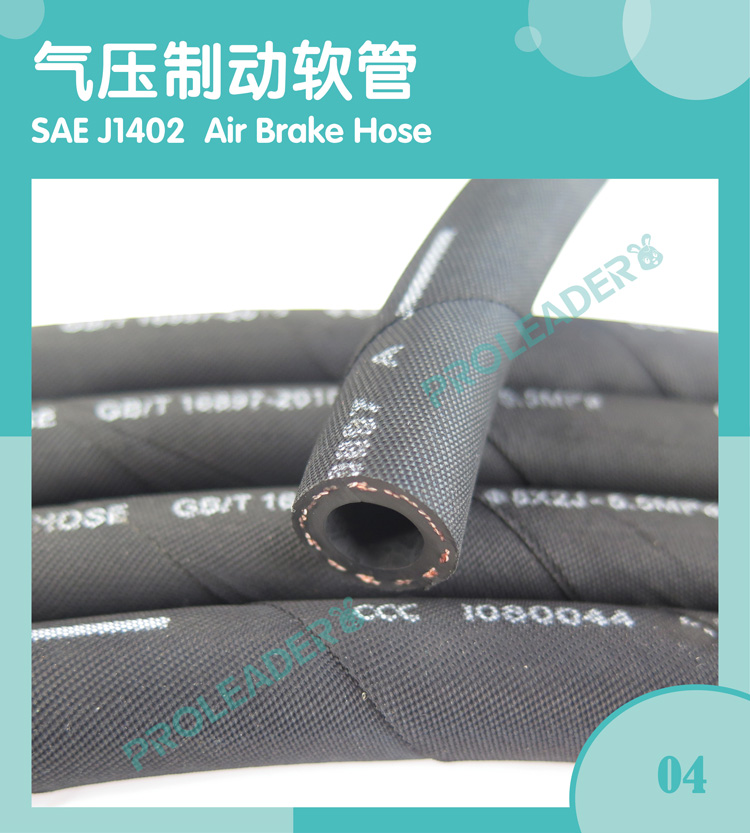

NO.4 SAE J1402 Air Brake Hose
Tube: EPDM
Reinforcement: One layer textile braid
Cover: EPD
MSize range：3/16” - 1 1/8”
Application: Suitable for transmission pressure of automobile air brake system
Temperature Range: -40°C~+135°C
To support assembly customization, it is necessary to provide the inner diameter of the rubber hose, the thread standard and pitch of the fitting, the overall length, and the clamping angle.
Imported from Germany, professional pressure curve testing, root pressure testing, quality assurance!
Remember to follow us, at 10:00 am on May 23rd Beijing Time, the anchor lady will share this product with you on time!
At the same time, there are free samples and full version product operation manuals for you!
