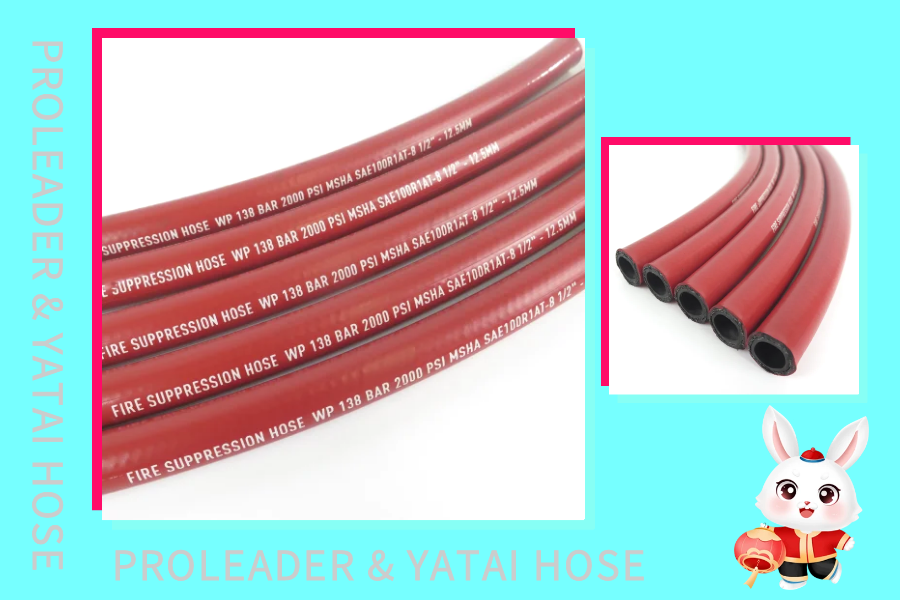

NO.1 Fire Extinguishing System Hose
Inner diameter: 1/4"~2"
Inner rubber: NBR
Reinforcement: one layer of copper-plated steel wire winding
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 40-225bar
Temperature range: -40°C~+100°C
Color: Black, Multicolor; Cloth or smooth surface
Application: Fire extinguishing system for stationary engines of off-highway vehicles, mining equipment, ships, etc. The hose has a red outer layer for easy identification in the fire extinguishing system

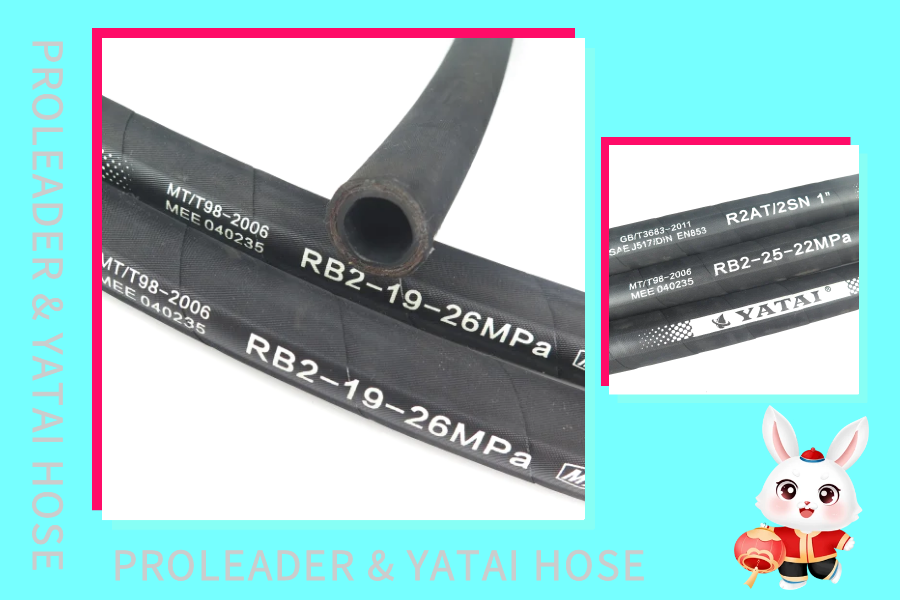

NO.2 MT 98 1 Layer Wire Braided Hydraulic Hose For Mining
Inner diameter: 1/4"~4"
Inner rubber: NBR
Reinforcement: one layer of copper-plated steel wire winding
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 20-320bar
Temperature range: -40°C~+100°C
Color: Black wrapped surface
Application: Suitable for coal mine hydraulic supports, coal mining units and other hydraulic systems using mineral oil, base hydraulic oil or water

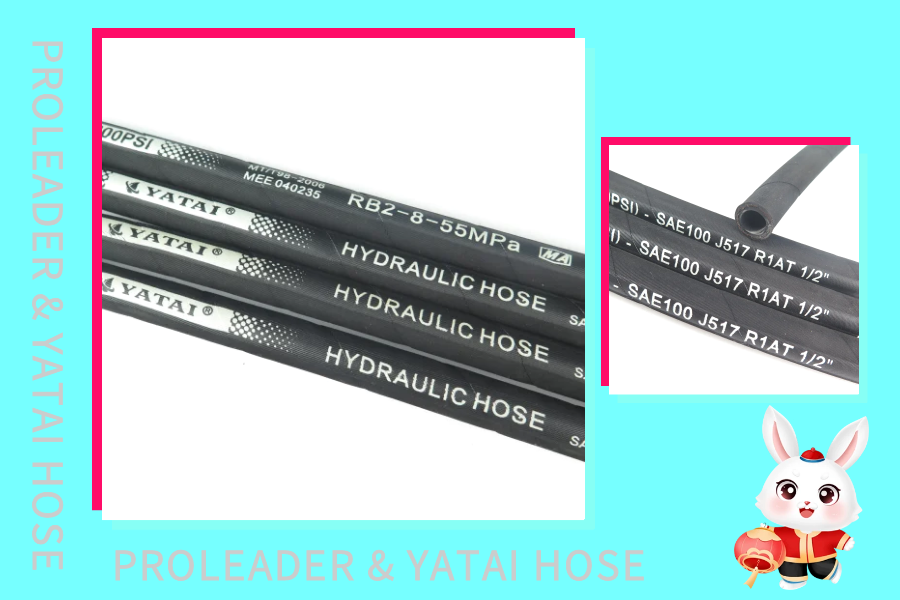

NO.3 MT 98 2 Layer Wire Braided Hydraulic Hose For Mining
Inner diameter: 1/4"~4"
Inner rubber: NBR
Reinforcement: 2 layers of copper-plated steel wire winding
Outer rubber layer: oil-resistant and weather-resistant CR
Working pressure: 40-560bar
Temperature range: -40°C~+100°C
Color: Black wrapped surface
Application: Suitable for coal mine hydraulic supports, coal mining units and other hydraulic systems using mineral oil, base hydraulic oil or water

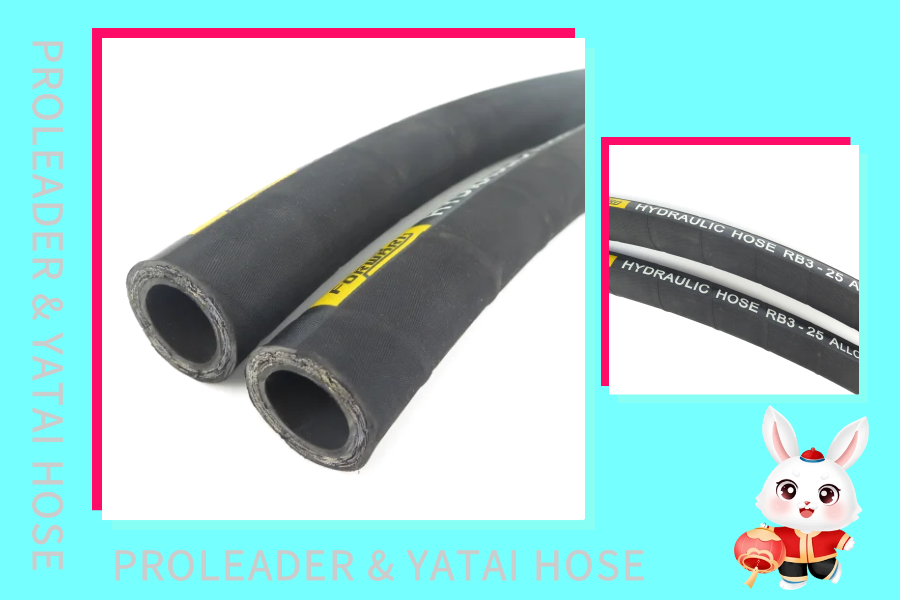

NO.4 MT 98 3 Layer Wire Braided Hydraulic Hose For Mining
Inner diameter: 5/16"~4"
Inner rubber: NBR
Reinforcement: 3 layers of copper-plated steel wire winding
Outer rubber: oil-resistant and weather-resistant CR
Working pressure: 150-500bar
Temperature range: -40°C~+100°C
Color: Black wrapped surface
Application: Suitable for coal mine hydraulic supports, coal mining units and other hydraulic systems using mineral oil, base hydraulic oil or water
Count down with me!
Asia International Power Transmission and Control Technology Exhibition 2023
Time：24 - 27 Oct 2023 Add To Calendar
Adds: Shanghai New International Expo Centre(SNIEC), Shanghai, China
(No. 2345, Longyang Road, Pudong New Area, Shanghai)
Need to order please contact me:
Technical consulting: Penny Chen
Tel：+86 18331807383
QQ: 2673360390
Email: penny@chnhose.com
