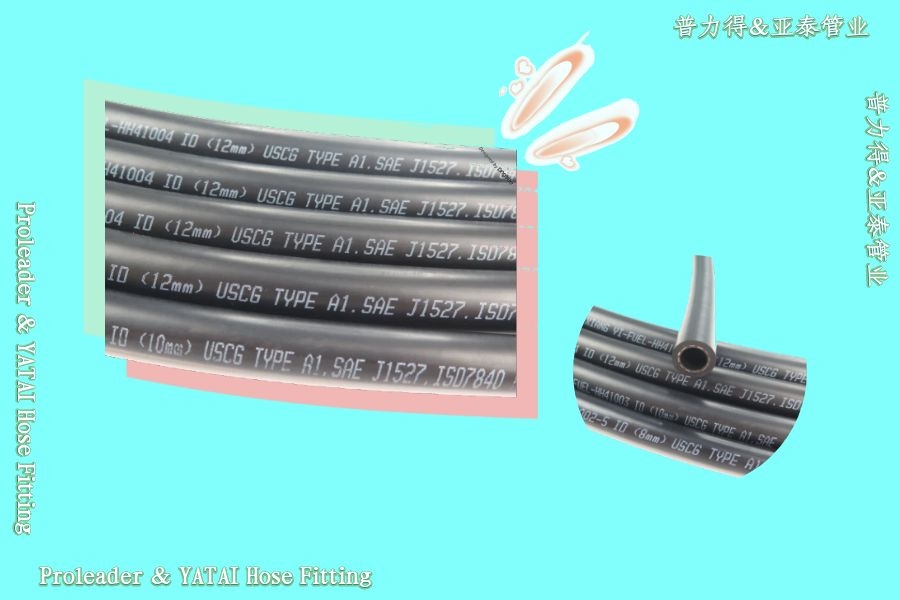

NO.1 SAE J1527 / ISO7840 Marine Fuel Line
Barrier: PA
Tube: NBR
Reinforcement: One layer textile braid
Cover: Flame retardant oil and weather resistant CR
Size range：3/16” - 5/8”
Application: Suitable for related operations of offshore gasoline storage tanks, and can also be used for refueling and unloading of luxury yachts at sea
Temperature Range: -40℃~+100℃
NO.2 SAE J1527 / ISO7840 USCG Marine Fuel Feed Vent Hose
Tube: NBR
Reinforcement: High tensile textile cord with helix steel wire plus conductive copper wire
Cover: Flame retardant oil and weather resistant CR
Size range：3/4” - 12”, length is 60m
pressure can choose 10 bar or 20 bar, just 20 bar is more popular
Application: For connection between a ship's fuel filler port and a ship's fuel tank, the fireproof outer layer meets the USCG's Class A for 2.5 minutes
Temperature Range: -30℃~+100℃

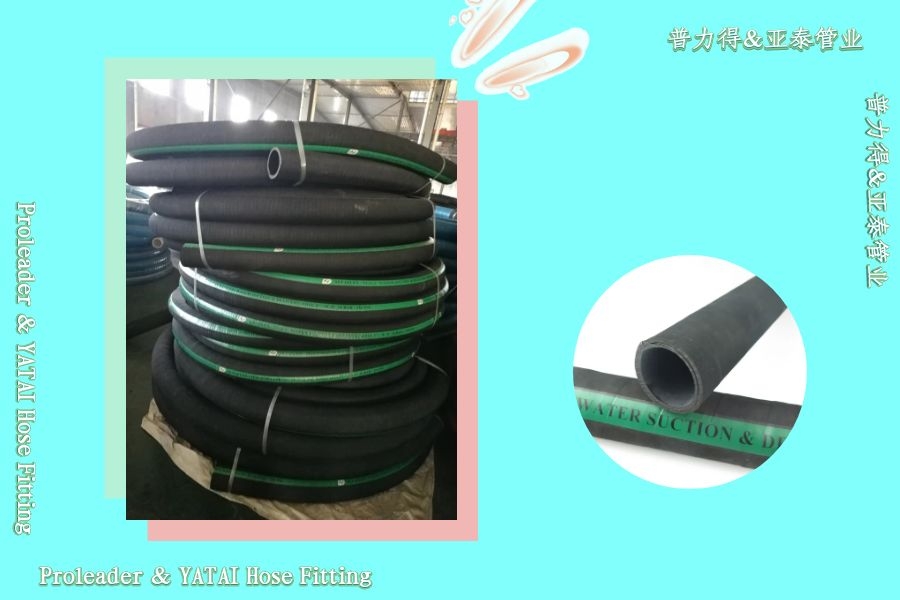

NO.3 SAE J2006 Marine Suction & Discharge Water Hose
Tube: EPDM
Reinforcement: High tensile textile cord with helix steel wire
Cover: Heat and weather resistant EPDM
Size range：3/4” - 12”,length is 60m
pressure can choose 10 bar or 20 bar, just 20 bar is more popular
Application: For suction-drain operations, engine injection, bilge toilet flushing, storage tanks and drain lines
Temperature Range: -30℃~+150℃
NO.4 SAE J2006 EPDM Wet Exhaust Hose
Tube: EPDM
Reinforcement: High tensile textile cord with helix steel wire
Cover: Heat and weather resistant EPDM
Size range：3/4” - 6” , length is 60m
pressure can choose 10 bar or 20 bar, just 20 bar is more popular
Application: Wet exhaust systems for use in marine environments, exhaust, cooling water or exhaust from marine diesel engines
Temperature Range: -30℃~+150℃
To support assembly customization, it is necessary to provide the inner diameter of the rubber hose, the thread standard and pitch of the fitting, the overall length, and the clamping angle.
Imported from Germany, professional pressure curve testing, root pressure testing, quality assurance!
Remember to follow us, at 10:00 am on April 4th Beijing Time, the anchor lady will share this product with you on time!
At the same time, there are free samples and full version product operation manuals for you!
