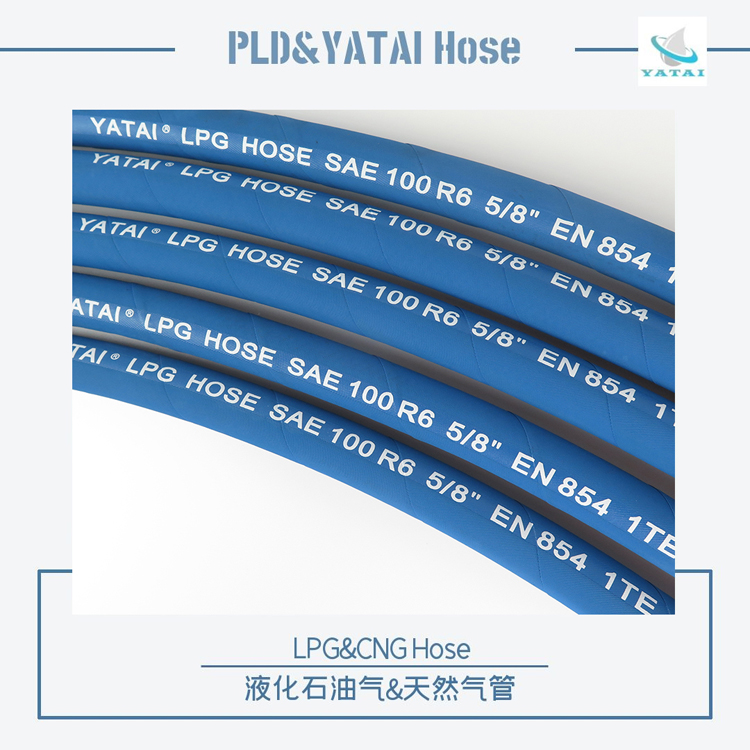

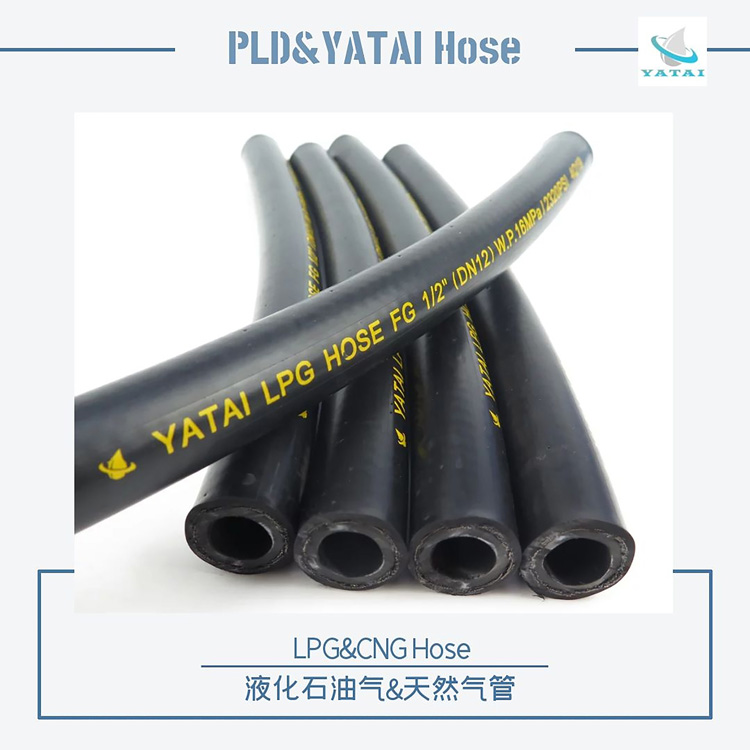

LPG & CNG Hose
Inner diameter: 5-102mm
Inner layer: NBR
Reinforcement layer: braided copper plated steel wire
Cover: CR
Temperature range: -40℃~120℃
Working pressure: 10-250Bar
Appearance color: black or color, cloth or smooth
Hose application: liquefied petroleum gas, natural gas, hydrogen, nitrogen, etc.
LPG & CNG Hose
Inner diameter: 5-102mm
Inner layer: NBR
Reinforcement layer: polyester Filament Weave
Cover: CR
Temperature range: -40℃~120℃
Working pressure: 10-250Bar
Appearance color: black or color, cloth or smooth
Hose application: liquefied petroleum gas, natural gas, hydrogen, nitrogen, etc.
Steam Hose
Inner diameter: 6-51mm
Inner layer: EPDM
Reinforcement layer: one or two layers of steel wire braid
Cover: EPDM
Temperature range: -40℃~220℃
Working pressure: 10-20Bar
Appearance color: black or red, cloth or smooth
Fire Extinguishing System Hose
Inner diameter: 6-25mm
Inner layer: NBR
Reinforcement layer: one layer of steel wire braid
Cover: CR
Temperature range: -40℃~120℃
Working pressure: 125-400Bar
Appearance color: red cloth or smooth
Hose application: special for fire fighting system
