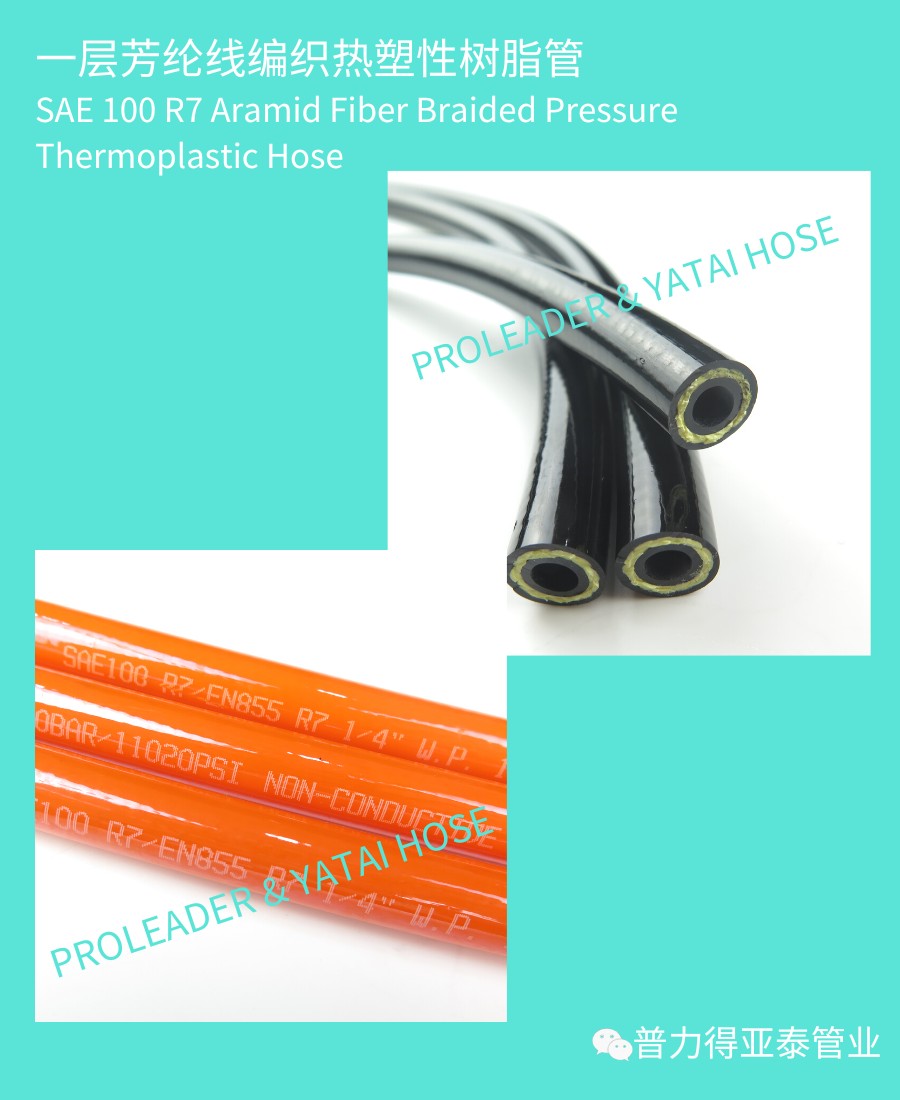

NO.1 SAE 100 R7 Aramid Fiber Braided Pressure Thermoplastic Hose
Inner diameter: 1/8"-2”
Inner rubber layer: PA11、PA12 Nylon
Reinforcement layer: One layer of aramid fiber braid
Outer rubber layer: PU
Working pressure: 50-350 bar
Application: Suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries
Temperature range: -40°C~+100°C
Color: Black or multiple colors
Twin or triple resin tube can be customized

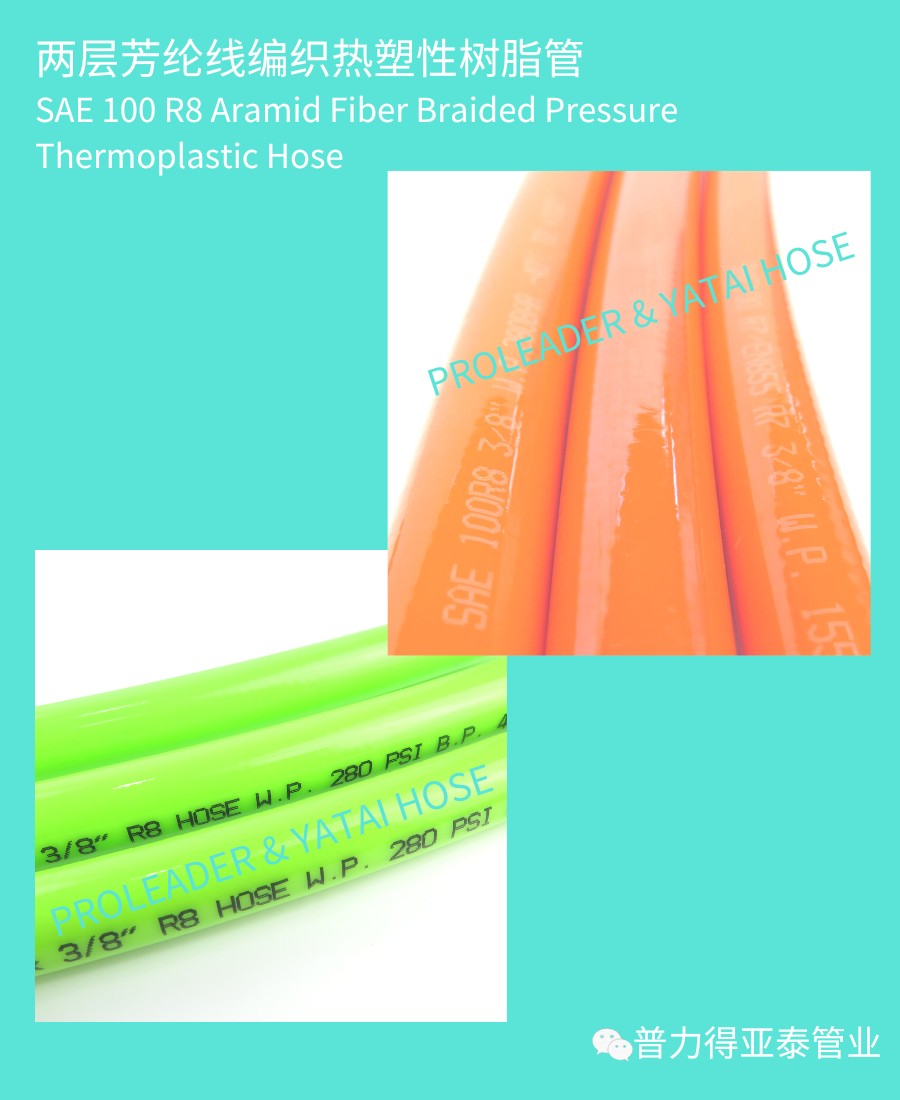

NO.2 SAE 100 R8 Aramid Fiber Braided Pressure Thermoplastic Hose
Inner diameter: 1/8"-1"
Inner rubber layer: PA11、PA12 Nylon
Reinforcement layer: Two layers of aramid fiber braid
Outer rubber layer: PU
Working pressure: 210-525 bar
Application: Suitable for fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries
Temperature range: -40°C~+100°C
Color: Black or multiple colors
Twin or triple resin tube can be customized

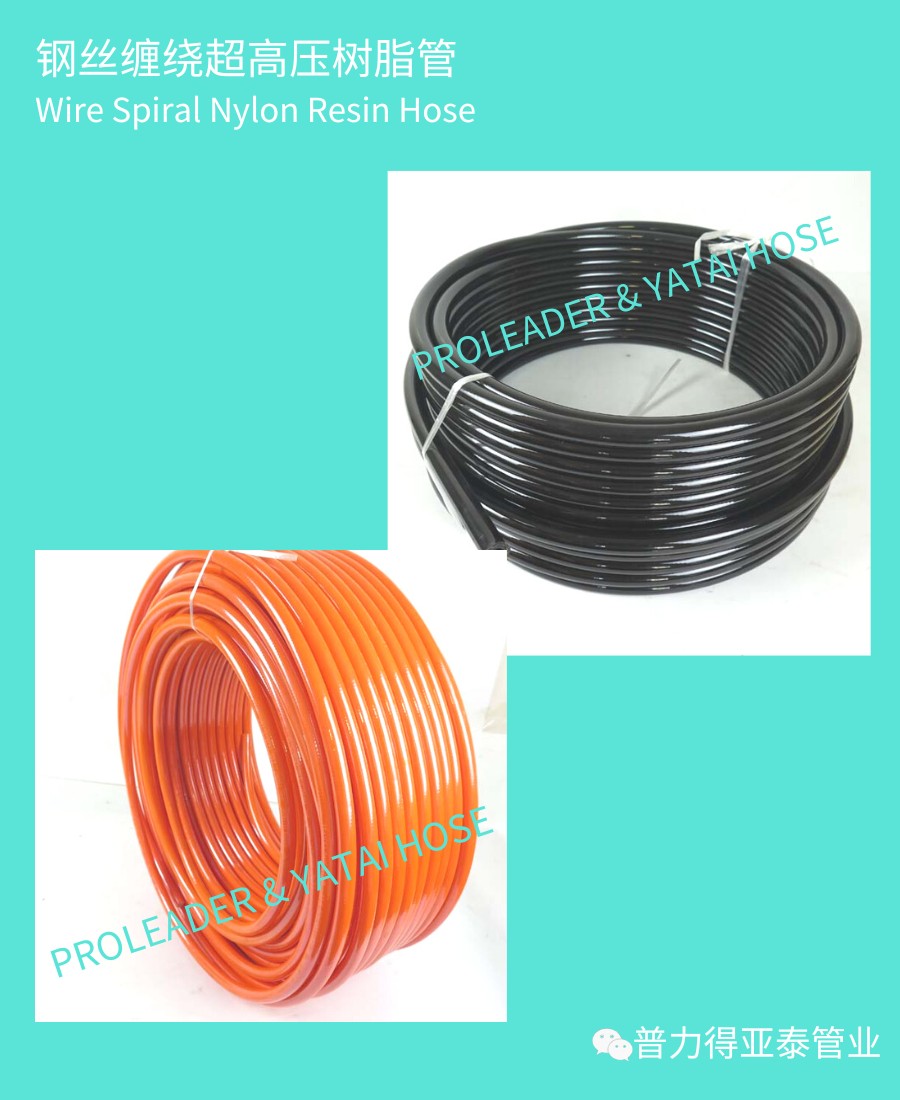

NO.3 Wire Spiral Nylon Resin Hose
Inner diameter: 5/32"-1/2"
Inner rubber layer: PA11、PA12 Nylon
Reinforcement layer: Two four or six high tensile steel wire spiral
Outer rubber layer: PU
Working pressure: 500-13000 bar
Application: Suitable for High pressure cleaning ，fluid transportation in vehicles, ships, construction machinery, machine tools, agricultural machinery, mining, paint spraying, aerospace, refrigeration and other industries
Temperature range: -40°C~+120°C

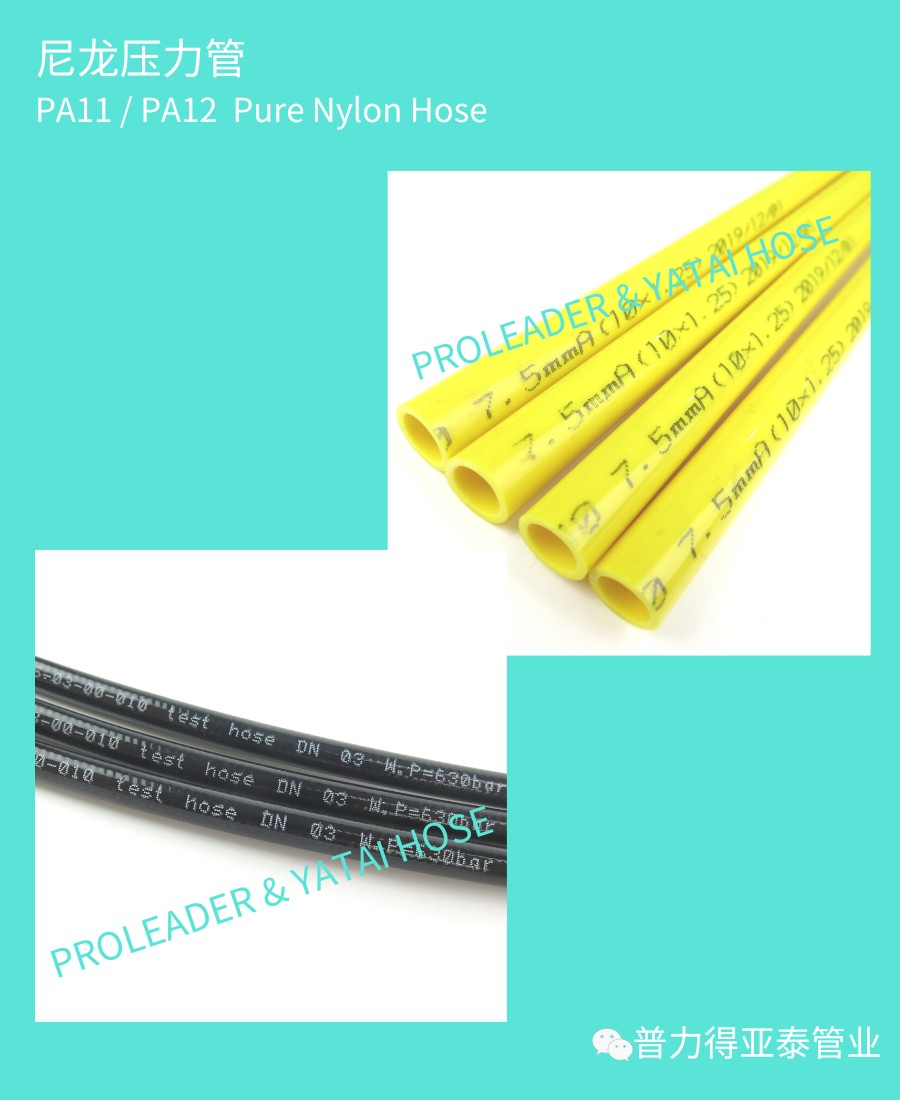

NO.4 PA11 / PA12 Pure Nylon Hose
Size: Φ3*0.5-Φ22*1
Tube: PA11、PA12 nylon
Working pressure: 15-45 bar
Application: Suitable for conveying compressed air, water, oil, fuel oil, chemical solvent, liquid food, braking system, etc
Temperature range: -40°C~+100°C
Color: Black or multiple colors

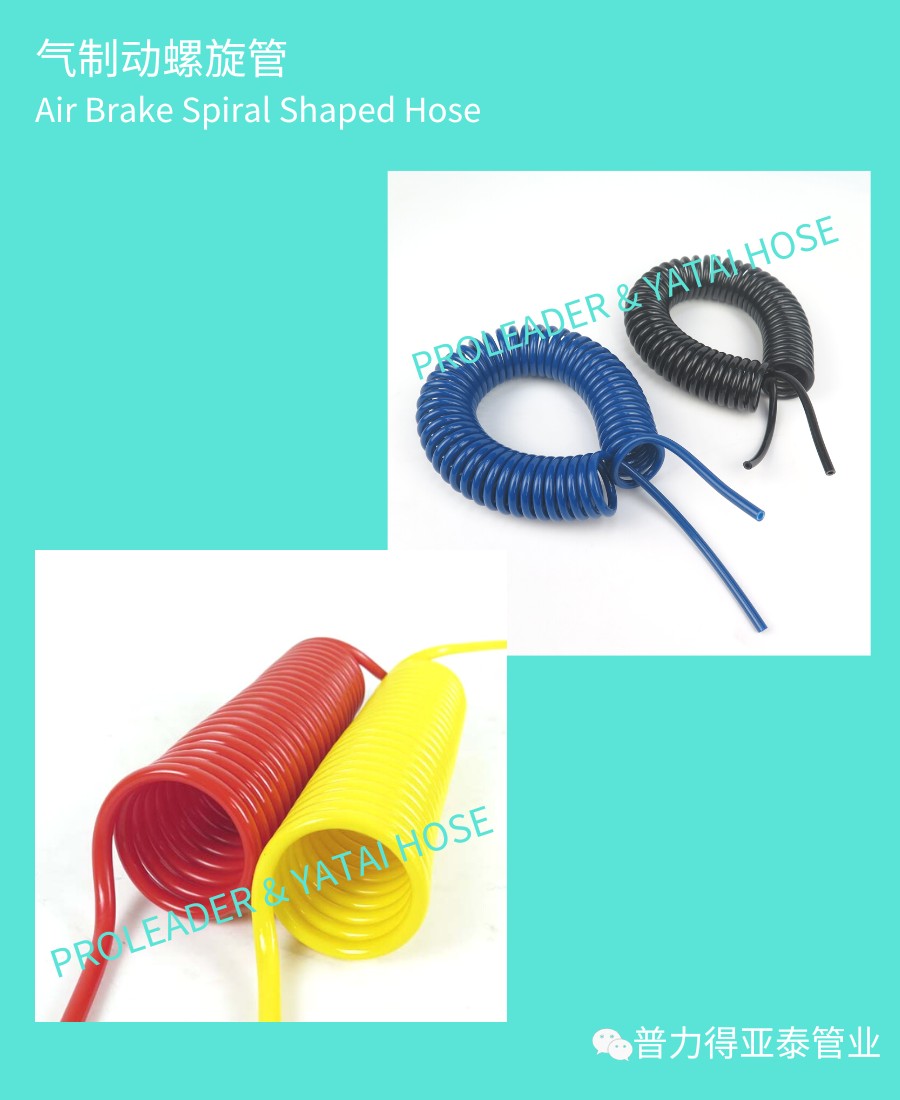

NO.5 Air Brake Spiral Shaped Hose
Size: Φ12*1.5
For customized specifications, please provide the number of spiral turns, spiral diameter, tube inner diameter, working length, and joint form
Application: The air brake coil is the connecting line of the air brake system of the saddle semi-trailer and the tractor trailer.
Temperature Range: -40°C~+100°C
Color: Black or multiple colors
There is also good news to share with everyone! The 27th Asia International Power Transmission and Control Technology Exhibition (PTC ASIA) Shanghai PTC in 2023. This is an international event that combines mechanical and electrical transmission, fluid transmission and control, mechanical components, hydraulics, seals, gears, motors, chain drives, belt drives, springs, and bearings. We welcome everyone to come and exchange ideas!
Time: October 24-27, 2023
Location: Shanghai New International Expo Center (No. 2345 Longyang Road, Pudong New Area, Shanghai)
Please contact me for an order:
Technical consultation: Lotus Wang
Tel:+86 15603187112 (same as WeChat)
QQ: 1002484820
