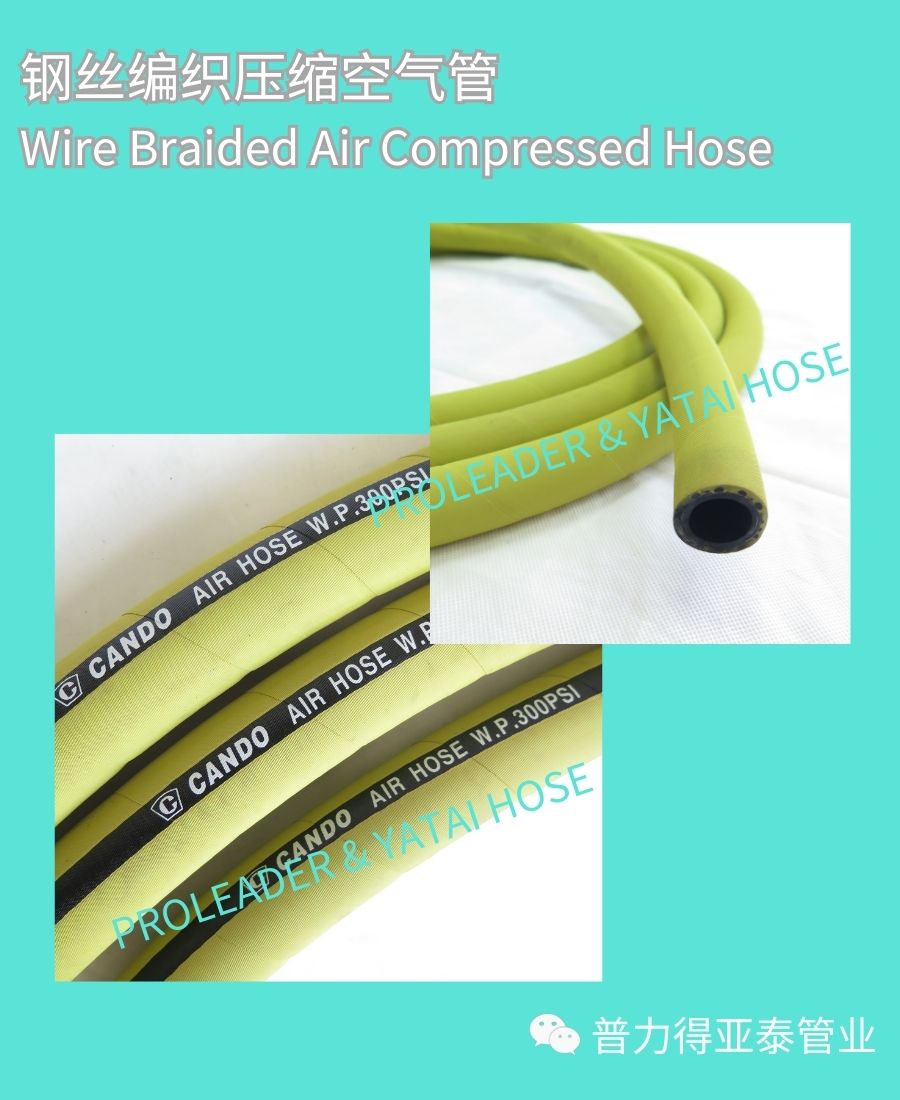

Wire Braided Air Compressed Hose
Inner Diameter: 1/4”-4”
Tube: NBR
Reinforcement: One high tensile steel wire braid
Cover: Oil and weather resistant CR
Work Pressure: 10-225 bar
Application: Conveying compressed air in special fields
Temperature Range: -40°C~+100°C
Appearance: Smooth or wrapped
Color: Black or yellow
SAE 100 R1 / EN853 1SN High Temperature Resistant Air Compressor Oil Hose
Inner Diameter: 1/4”-2.3/8”
Tube: NBR
Reinforcement: One high tensile steel wire braid
Cover: Oil and weather resistant CR
Work Pressure: 50-225 bar
Application: Suitable for extreme temperature conditions, using petroleum-based hydraulic fluids
Temperature Range: -30°C~+135°C
Appearance: Smooth or wrapped
Color: Black or blue

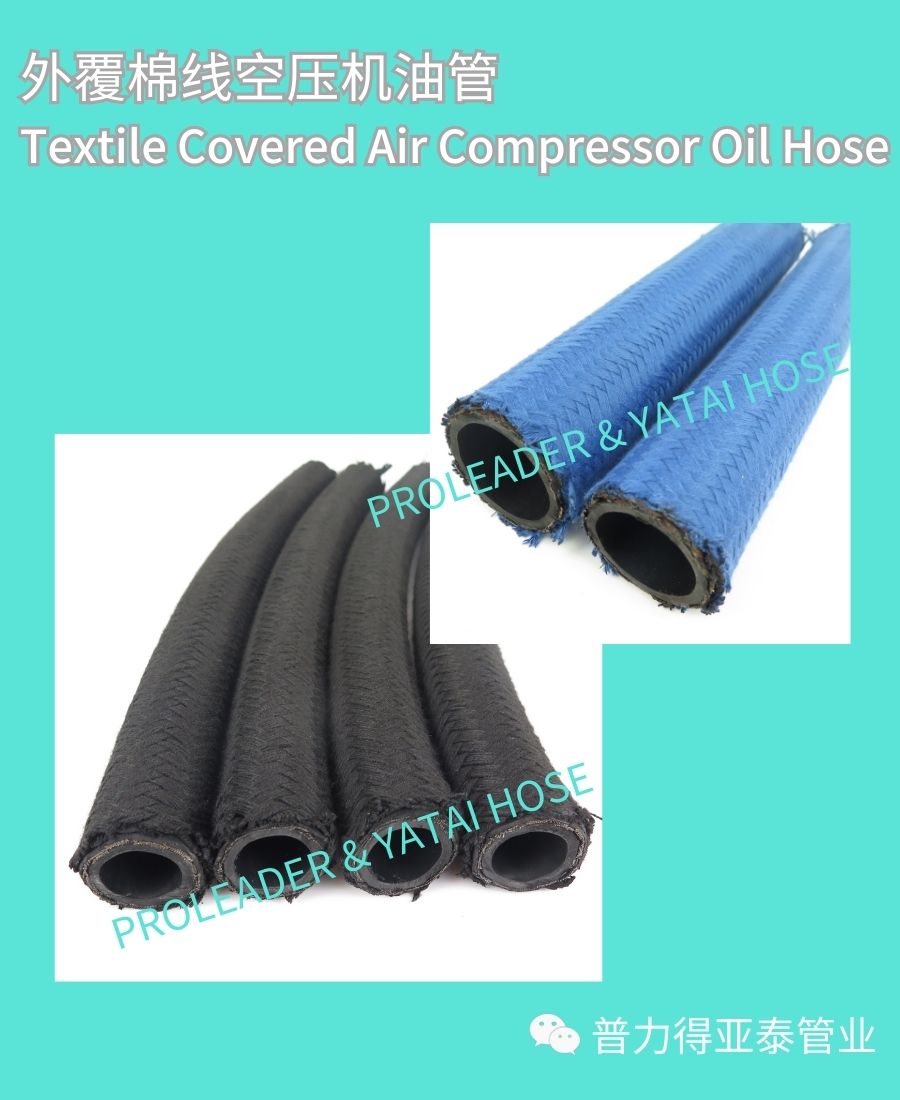

Textile Covered Air Compressor Oil Hose
Inner Diameter:3/16”-2.3/8”
Tube: NBR
Reinforcement: One high tensile steel wire braid
Cover: One layer textile braid
Work Pressure: 20-210 bar
Application: Suitable for tight spaces, use petroleum-based hydraulic fluids
Temperature Range: -30°C~+135°C
Color: Black or blue

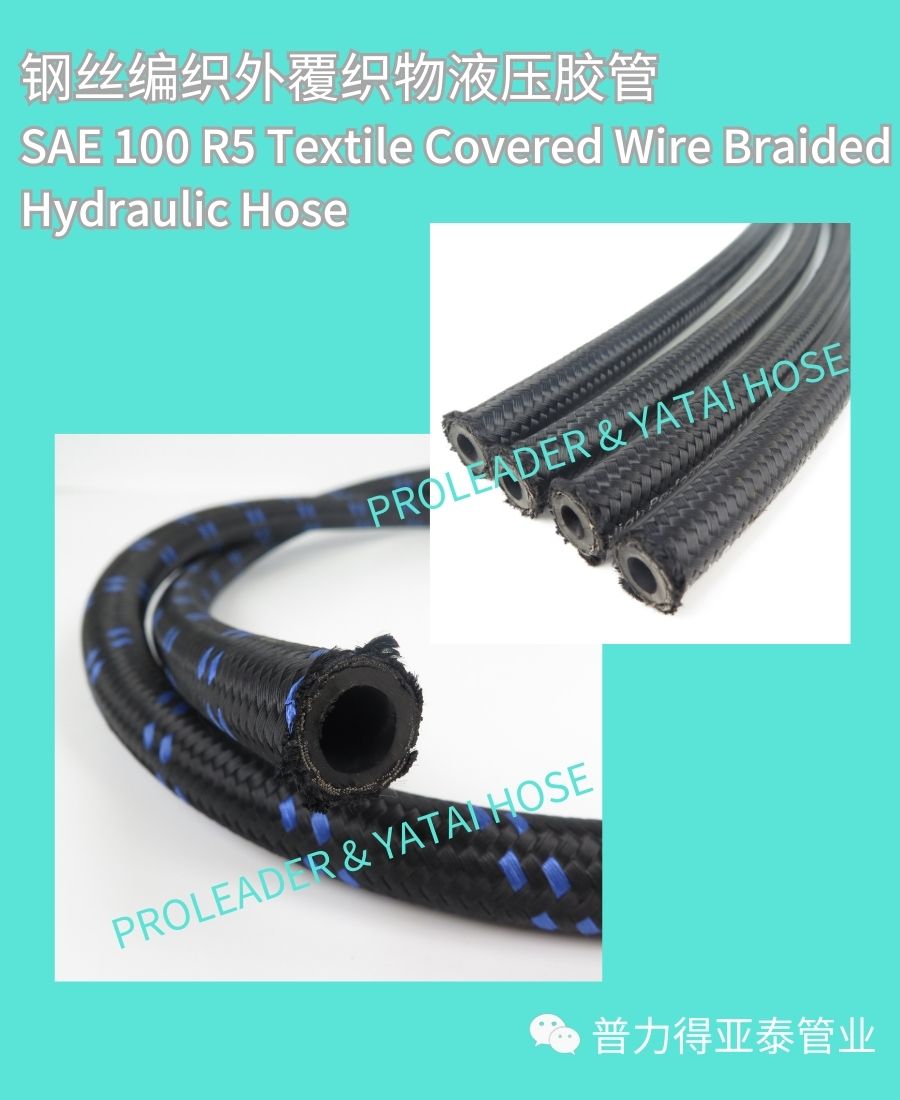

SAE 100 R5 Textile Covered Wire Braided Hydraulic Hose
Inner Diameter:3/16”-2.3/8”
Tube: NBR
Reinforcement: One high tensile steel wire braid
Cover: One layer textile braid
Work Pressure: 20-210 bar
Application: Suitable for use with petroleum-based hydraulic fluids
Temperature Range: -40°C~+100°C
Appearance: Smooth or wrapped
Color: Black or multiple colors
