NO.1 Textile Braided Cable Protective Sleeve
I.D : 1/2"~2"
Inner rubber: NBR
Reinforcement: one layer textile braid
Outer rubber: Weatner and flame resistant CR
Working pressure: 10~28bar
Temperature range: -40°C~+100°C
Appearance: Smooth or wrapped
Color:Black or multiple colors
Application: Suitable for extreme conditions,often used for cooling and protecting cables in underground mining equipment,industrialfields,welding machinery,ect.
NO.2 Wire Braided Cable Protective Sleeve
I.D : 1/2"~2"
Inner rubber: NBR
Reinforcement: One high tensile steel wire braid
Outer rubber: Weather and flame resistant CR
Working pressure: 40~160bar
Temperature range: -40°C~+100°C
Appearance: Smooth or wrapped
Color:Black or multiple colors
Application: Suitable for estreme conditions,often used for cooling and protecting cables in underground mining equipment,industrialfields,welding machinery,etc

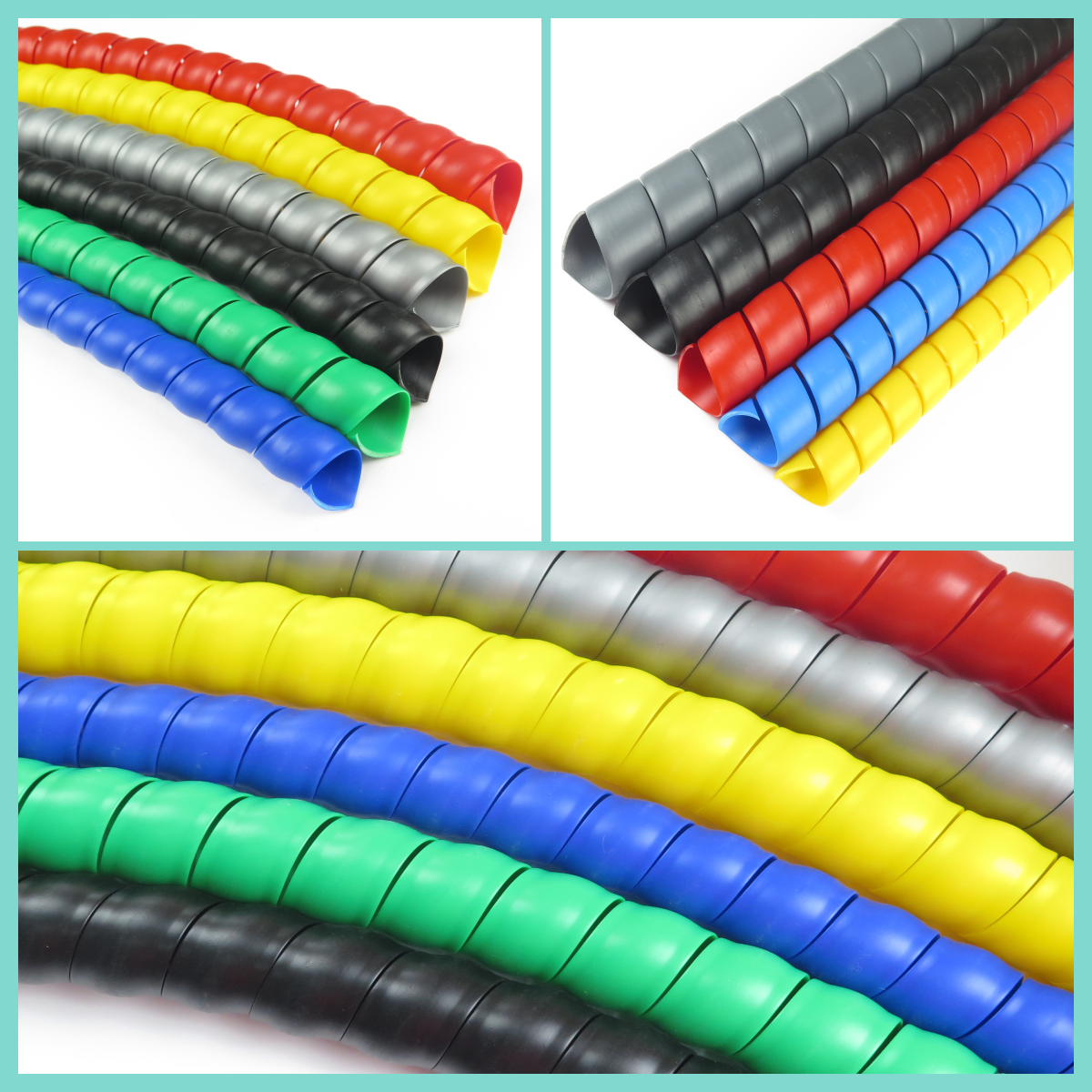

NO.3 Spiral Protective Sleeve
I.D : 8~200mm
O.D:8-10mm~200-300mm
Maternials:Modified polypropylene PP
Cover：Flat or curved
Color：Black or multiple colors
Temperature range: -30°C~+100°C
Application: Suitable for anti-aging and wear-resistant protection on the outside of construction machinery,vehicles,injection moldingmachine hoses,high-pressure cleaning hoses,wires,cables and other products.

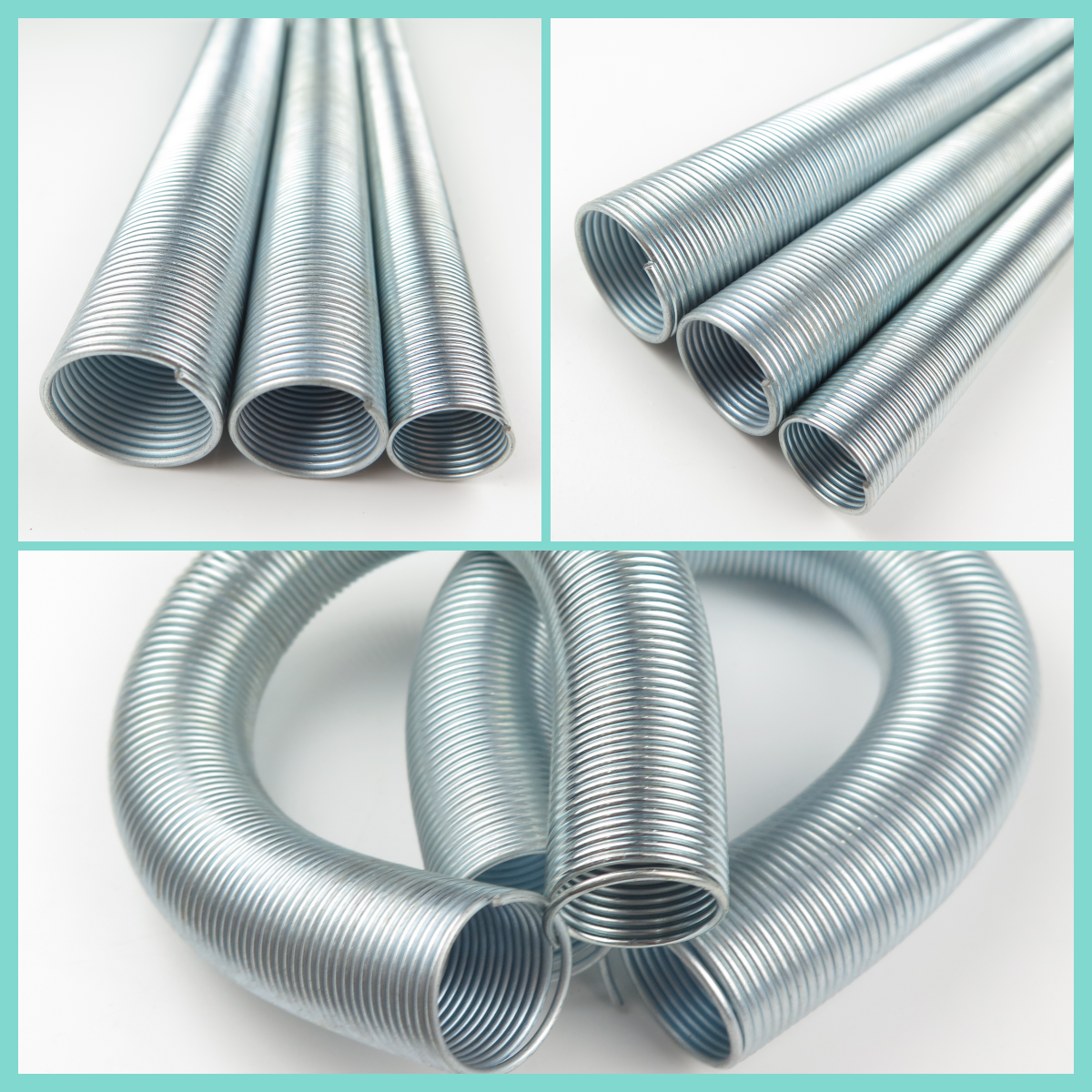

NO.4 Carbon Steel Spring Guard
I.D: 15mm~74mm
Steel Wire: 1.5mm~2.5mm
Working pressure: 10bar
Materiat ：Carbon spring wire or stainless steel spring wire
Color：White zinc plated or yellow zinc
Application: Protective spring refers to several coils of springs that protect the outside of precision wire signal lines or oil hose,waterhose,and other gas and liquid conveying hose.
NO.5 Sleeving
Please contact me if you need to order:
Technical consultation: Lotus
Tel: +86 15603187112 (same as WeChat)
QQ: 1002484820
Email: lotus@chnhose.com
