KEY PERFORMANCE
EN/DIN and new SAE rated working pressures
Superior abrasion resistant，excellent flexibility，high working pressure
Appearance: Wrap
Branding: Printing
Colour: Black
Applicable for all types of concrete wet spraying machine, injection machine,Pneumatic equipment for conveying pump and conveying cement and mineral.

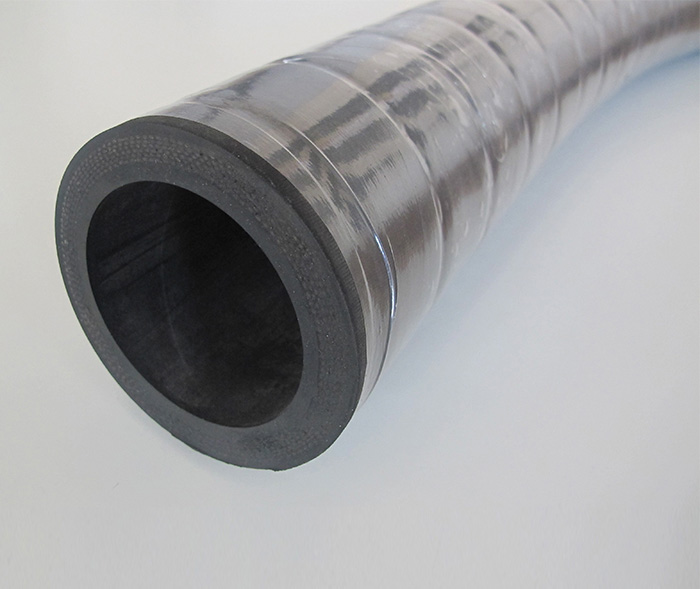

Hose Marking:YATAI PREMIUM CONCRETE PLACING STEEL REINFORCED HOSE W.P.85BAR SAFETY FACTOR:2:5:1
| YATAI PART.REF. | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| CP 51 | 51 | -32 | 2" | - | 68 | 85 | 1230 | 200 | 2900 | 200 | 2.80 |
| CP 63 | 63 | -40 | 2-1/2" | - | 85 | 85 | 1230 | 200 | 2900 | 250 | 4.30 |
| CP 76 | 76 | -48 | 3" | - | 102 | 85 | 1230 | 200 | 2900 | 270 | 6.00 |
| CP 89 | 89 | -56 | 3-1/2" | - | 116 | 85 | 1230 | 200 | 2900 | 290 | 7.50 |
| CP 102 | 102 | -64 | 4" | - | 130 | 85 | 1230 | 200 | 2900 | 300 | 9.10 |
| CP 115 | 115 | -72 | 4-1/2" | - | 143 | 85 | 1230 | 200 | 2900 | 320 | 10.50 |
| CP 125 | 125 | -80 | 5" | - | 158 | 85 | 1230 | 200 | 2900 | 360 | 12.80 |
| CP 152 | 152 | -96 | 6" | - | 186 | 85 | 1230 | 200 | 2900 | 570 | 17.00 |
CONTINUOUS SERVICE TEMPERATURE RANGE: -30°F / +176°F; -30°C / +80°C
INSERT: SHF-TYPE
TUBE: NR Synthetic Rubber
REINFORCEMENT: ID≤65mm Two High Tensile steel wire layers 2W; Two tensile steel spirals;65mm<id≤150mm; Four tensile steel spirals
COVER: NR Synthetic Rubber
APPLICABLE SPECS: GB/T24145-2009
